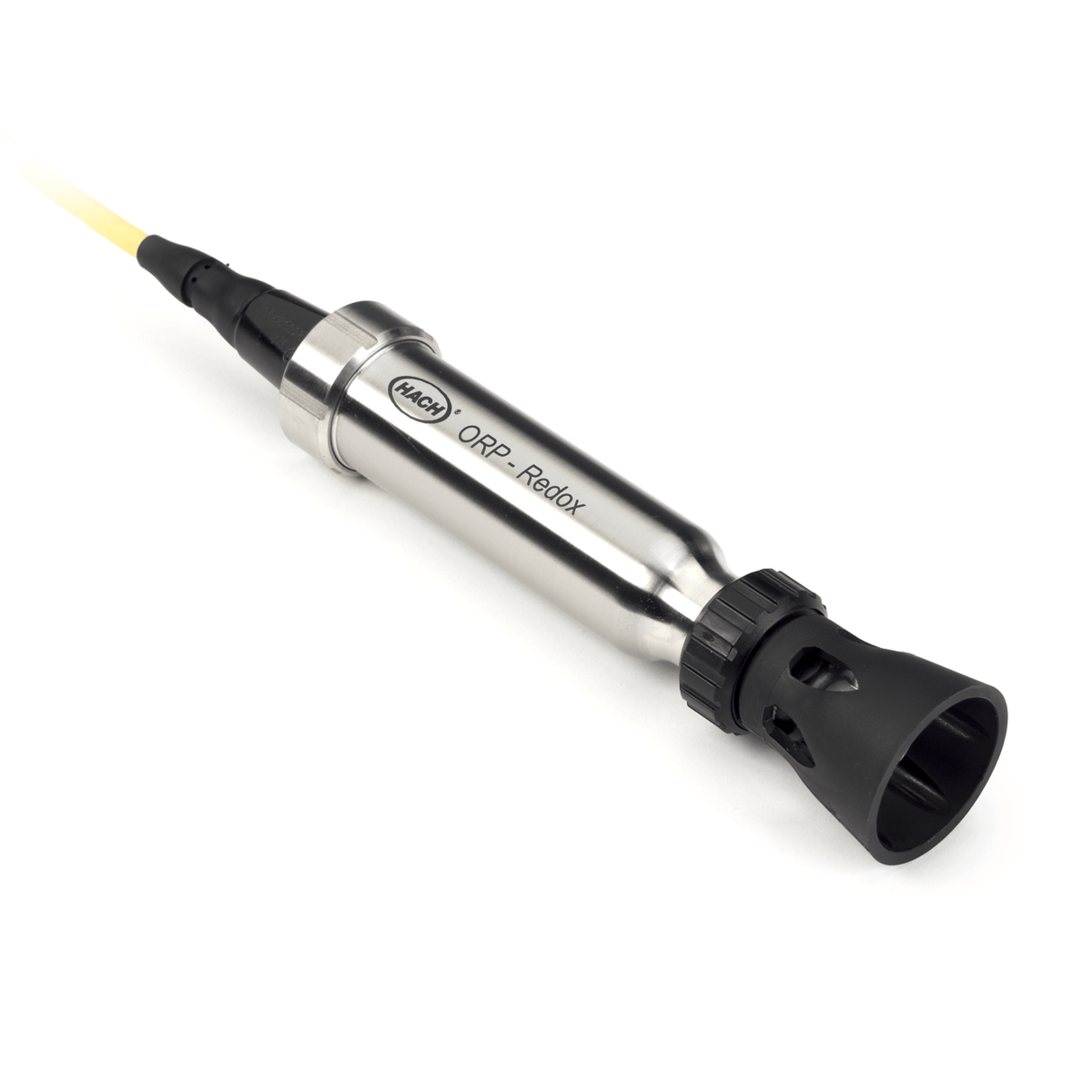

Hach IntelliCAL MTC101 Field Low Maintenance Gel Filled ORP/RedOx Electrode, 10 m Cable, MTC10110

$1,020.00 | EA
Product #: 703945
Mfr. Part #: MTC10110

This item is in stock

Description

IntelliCALⓇ MTC101 is a digital combination oxidation reduction potential (ORP/RedOx) electrode with built-in temperature sensor. MTC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. This Rugged MTC101 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the Metal Platinum sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the MTC101 rugged models specially designed for field use. MTC101 Rugged is available with a 5, 10, 15, or 30 meters cable. The MTC101 Rugged is ideal for measuring ORP/RedOx absolute mV values in all types of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.

Features

    Stainless steel body, polymer sensor shroud, and reinforced, steel-sheathed cables protect the probe for measurement anywhere in the field

    Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number

    No guesswork needed to provide most reliable and accurate results with each measurement.

    Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters

Product Specifications

Probe typeRugged
Resolution±0.1 mV
Sensor typePlatinum disc
Water ResistanceIP67, waterproof for 24 hours at a depth of 30 meters
Special featuresFlat disc sensor for easy cleaning.
Electrode TypeNon-Refillable Gel Reference Element
Temperature Resolution0.1 °C (0.18 °F)
ThermistorATC
Accuracy±0.02 mV or 0.05%, whichever is greater
JunctionOpen Junction
Weight3.4800
Sensor MaterialEpoxy / Stainless Steel
Sample Depth20 mm (0.79 in.)
Reference SystemAg/AgCl
Product KitModel: MTC101 Accessories Included: None
Temperature Accuracy±0.3 °C (±0.54 °F)
Method TypeField: Non-Refillable Gel Reference Element
Temperature range0 - 80 °C (32 - 176 °F)
ParametersORP
Warranty6 months
