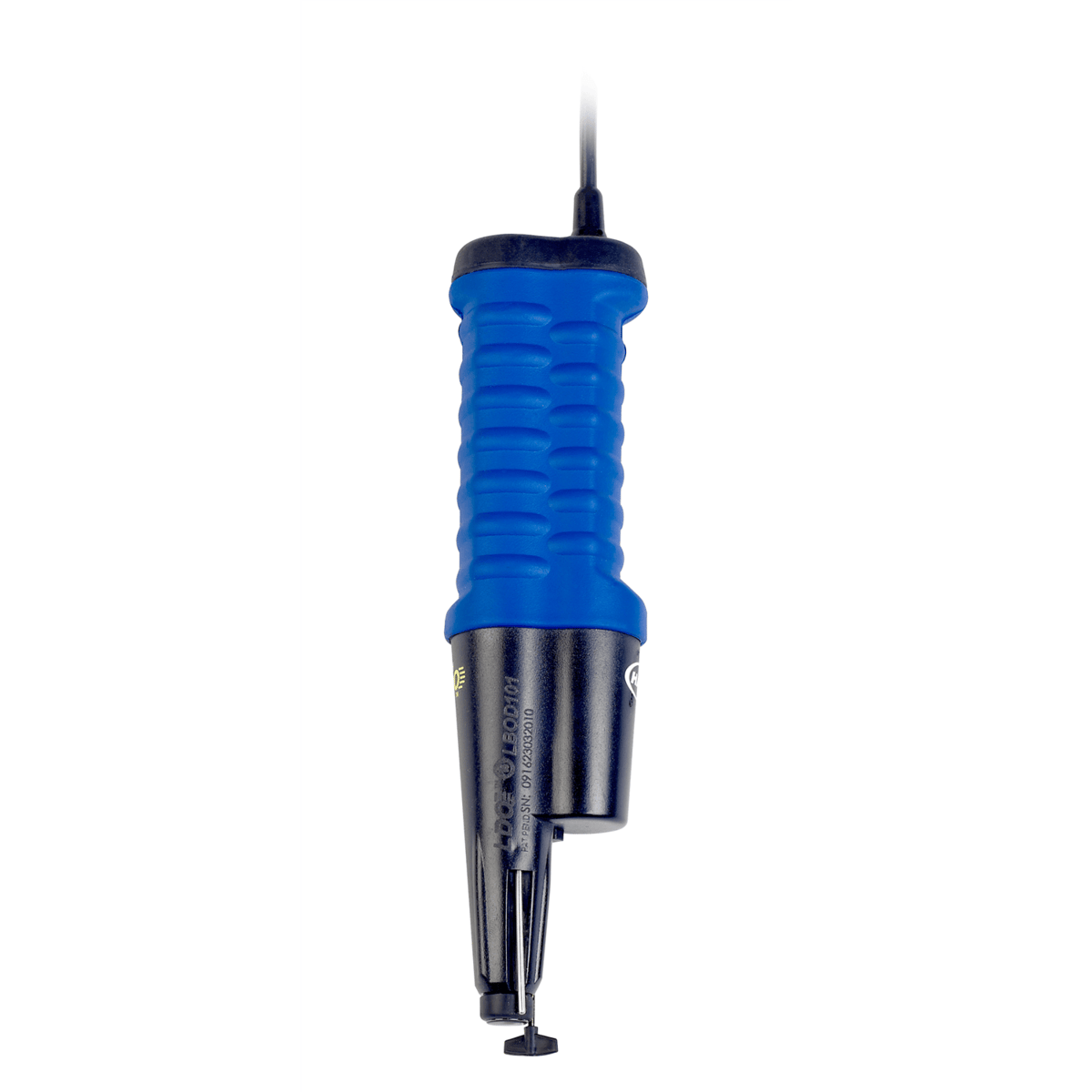

Hach IntelliCAL LBOD101 Luminescent/Optical Dissolved Oxygen Sensor for BOD, 1 m cable, LBOD10101

By Hach
$1,592.00 | EA
Product #: 703509
Mfr. Part #: LBOD10101

This item is in stock

Back

Description

IntelliCAL® LBOD101 is the latest embodiment of Hach’s patented Luminescent Dissolved Oxygen (LDO) technology. The LBOD101 is a digital, luminescent dissolved oxygen (LDO) sensor with a replaceable, integrated stirring system. The LBOD101 measures the dissolved oxygen for BOD (Biochemical Oxygen Demand) determination in BOD bottles in BOD5 testing applications. The LBOD101 probe is used for initial and final dissolved oxygen measurements. The LBOD101 is fitted with an automatic pressure sensor module. The DO sensing cap comes with an iButton to track days in use and remind remaining life of the sensing cap element.

Features

  • The IntelliCAL LBOD101 probe has no membranes to foul or replace, no electrolyte solution to replenish, and fast, reliable 2-point calibration that stabilizes quickly. Additionally, there is no 30-minute polarization and warm-up time with the LBOD101 probe.

  • The IntelliCAL LBOD101 has no membranes to replace (lower cost of ownership), features a replaceable stirrer assembly and a long-life patented magnetic-based motor that is also replaceable.

  • Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number.

  • Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.

Includes

IntelliCAL LBOD101 Luminescent Dissolved Oxygen (LDO) sensor for BOD measurement, DO Cap with its iButton (already mounted), Test certificate, and Basic User Manual.

Product Specifications

Temperature range 0 - 50 °C (32 - 122 °F)
Parameters BOD
Warranty 12 months
Probe type Standard
Resolution 0.01/0.1
Sensor type Lumiphore
Special features Integrated stirring system.
Electrode Type Luminescent Dissolved Oxygen
Temperature Resolution 0.1 °C (0.18 °F)
Thermistor ATC
Accuracy ±0.05 mg/L from 0 to 10 mg/L; ±0.1 mg/L for greater than 10 mg/L
Sensor Material Polycarbonate / ABS
Sensor Cable 1.8 m
Sample Depth 10 mm (0.394 in.)
Saturation Resolution 0.1 %
Saturation Accuracy ±0.59% of reading
Product Kit Model: LBOD101 Accessories Included: None
Pressure Resolution 5 mbar (0.5 kPa)
Pressure Accuracy ±3 mbar (0.3 kPa)
Temperature Accuracy ±0.3 °C (±0.54 °F)
Method Type Laboratory: Luminescent Dissolved Oxygen
