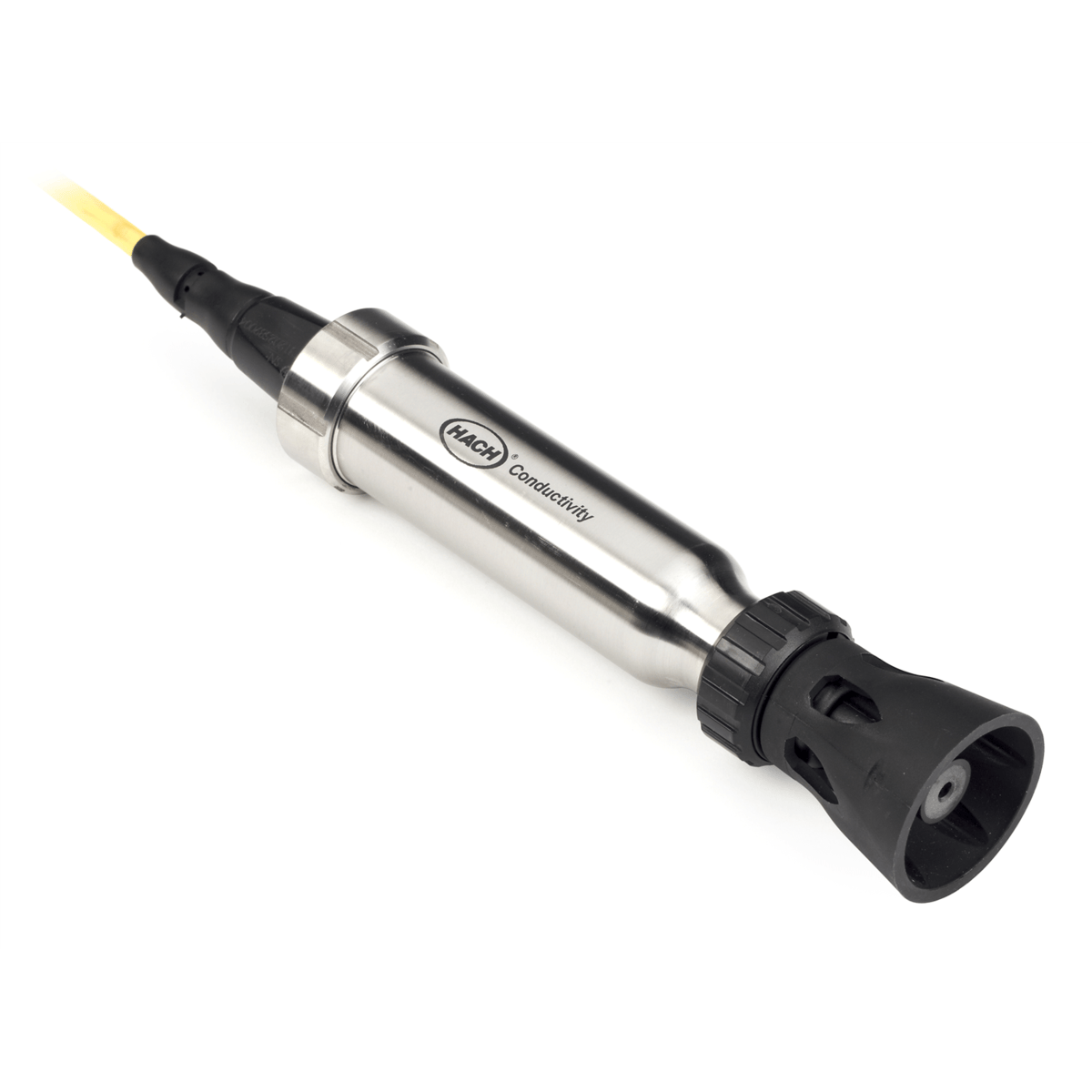

IntelliCALⓇ CDC401 is a digital, graphite, 4-pole conductivity cell with a temperature sensor. This Rugged CDC401 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the CDC401 rugged models specially designed for field use. CDC401 Rugged is available with a 5, 10, 15, or 30 meters cable. The CDC401 Rugged is ideal for measuring electrical conductivity, salinity, resistivity, or total dissolved solids (TDS) in all types of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.
- Stainless steel body, polymer sensor shroud, and reinforced, steel-sheathed cables protect the probe for measurement anywhere in the field.
- Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
- No guesswork needed to provide the most reliable and accurate results with each measurement.
- Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.
Warranty | 12 months |
Probe type | Rugged |
Resolution | 0.01/0.1 (5 digits max.) |
Sensor type | 4-poles conductivity probe, Graphite, k = 0.40 cm-1 |
Water Resistance | IP67, waterproof for 24 hours at a depth of 30 meters |
Electrode Type | Conductivity Cell; 4 Poles - Graphite |
Temperature Resolution | 0.1 °C (0.18 °F) |
Thermistor | ATC |
Accuracy | Cond: ±0.5% of reading;TDS: ±0.5% ±1 digit;Salinity: ±0.1, ±1 digit |
Weight | 4.1800 |
Sensor Material | Noryl / Stainless Steel |
Sample Depth | 45 mm (1.77 in.) |
Product Kit | Model: CDC401 Accessories Included: None |
Temperature Accuracy | ±0.3 °C (±0.54 °F) |
Method Type | Field: 4 Poles - Graphite |
Temperature range | -10 - 110 °C (14 - 230 °F) |
Parameters | Conductivity |
