Hach Dual Parameter Panel for Chlorine and Turbidity with SC4500, CL17sc and TU5300sc, DPMP-CLTU

By Hach
$12,875.00 | EA
Product #: 707838
Mfr. Part #: DPMP-CLTU

Out of Stock - Ships in 30 Days

Accessories
Hach Replacement Process Sample Vial, LZY834
$55.99
Hach CL17 Chlorine Analyzer Maintenance Kit (Pre-Assembled Tubing), 5444301
$282.00
Hach Free Chlorine Reagent Set for Chlorine Analyzer CL17/CL17sc, 2556900
$78.65
Hach Total Chlorine Reagent Set for Chlorine Analyzer CL17/CL17sc, 2557000
$78.65
Hach Replacement Desiccant Drying Cartridge, LZY876
$60.25
Hach Silicone Wiper, Cleaning, TU5 Series, LZY915
$59.25
Hach Glass Rod Secondary Turbidity Standard ˂0.1 NTU for TU5200, TU5300sc & TU5400sc, RFID, LZY901
$1,616.00
Hach Fiber Wiper for TU5300sc and TU5400sc Automatic Cleaning Module, LZQ176
$42.49
Hach CL17sc Tubing Kit (Pre-assembled), 8560400
$156.00
Hach Stablcal® Calibration Set w/out RFID for TU5200, TU5300sc & TU5400sc Laser Turbidimeter, LZY898
$689.00
Hach CL17sc Calibration Verification Kit, 8568200
$157.00
Hach Vial Compartment Wiper for TU5300sc and TU5400sc, 10/pk, LZY910
$32.19
Hach CL17sc Cell Cleaning Kit, 8573100
$25.70
Back

Description

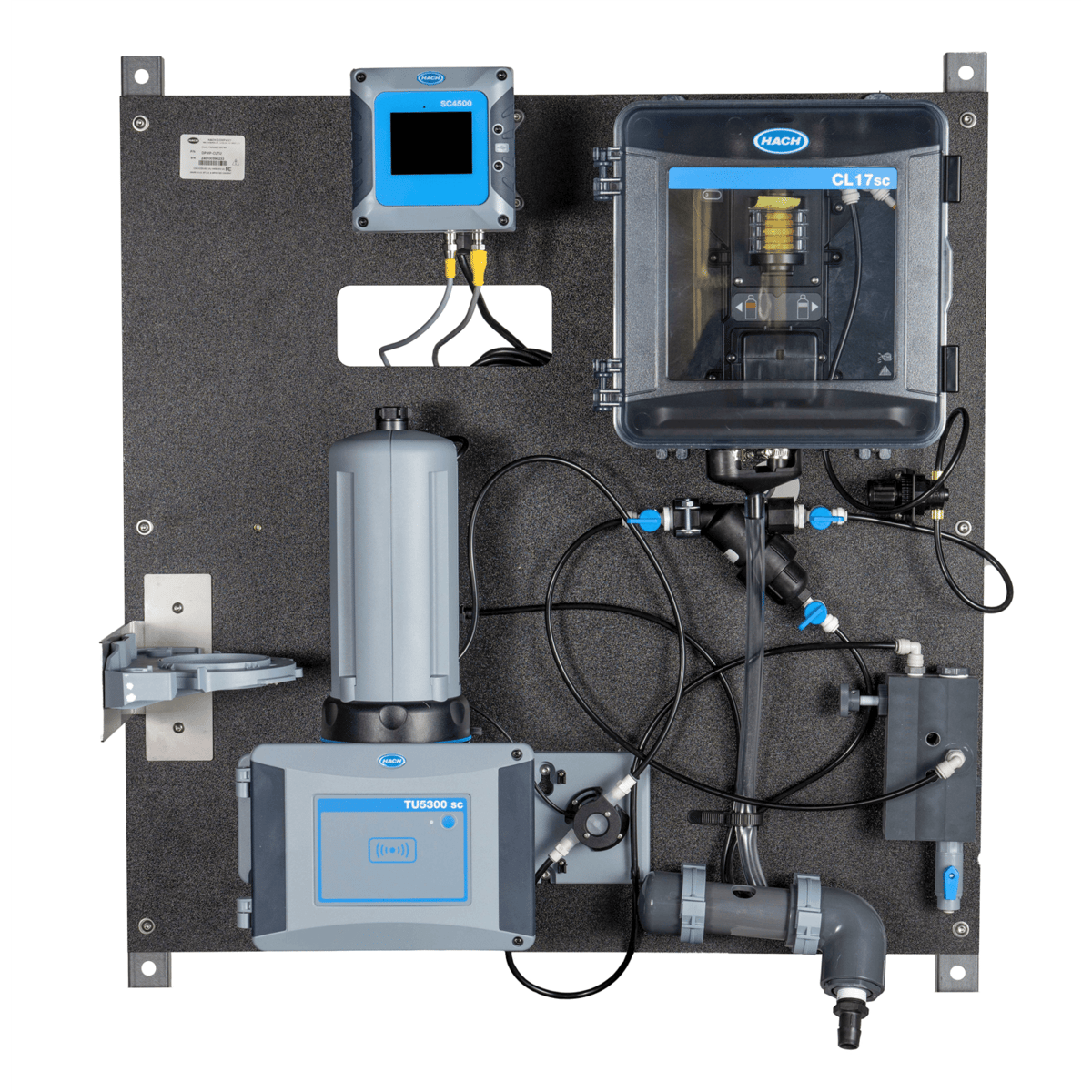

The Hach® Dual Parameter Chlorine and Turbidity panel offers the CL17sc chlorine analyzer, TU5 Series TU5300sc Low Range Laser Turbidimeter and SC4500 controller in the convenience of one panel. These panel configurations are pre-engineered, ready to install, simple solutions that are designed to work together.

Features

  • One panel for monitoring free or total chlorine residual from 0-10 mg/L and low range turbidity from 0 to 700 NTU with automatic cleaning module and SC4500 controller

  • Expertly designed, preassembled panels ease purchasing and startup

  • Up and running in minutes - wall or rack mount using (4) bolts, a single 1/4" inlet, a single 3/4" drain and one 115V power cord

  • Simplify monitoring and maintenance with streamlined layout

Includes

SC4500 Controller, Smart Monitoring-enabled, 5x mA Output, 2 digital Sensors, 100-240 VAC, US plug (LXV525.99EA1551), TU5300sc Low Range Laser Turbidimeter (LXV445.53.B3112), Flow Sensor for TU5300sc and TU5400sc Laser Turbidimeter (LQV160.99.00002), CL17sc Colorimetric Chlorine Analyser with Pressure Regulator Installation Kit, without Reagents (8572400), User manual

Product Specifications

Display 3.5-inch TFT color display with capacitive touchpad (SC4500)
Range 1 0 - 10 mg/L free or total residual chlorine
Air Purge Optional with 3/8-inch quick-connect fitting and tubing; 0.003 m3/min at 1.38 bar (20 psig) maximum
Wavelength 510 nm
Interferences Other oxidizing agents such as bromide, chlorine dioxide, permanganate, and ozone
Enclosure Rating IP66 / NEMA 4X
Accuracy Chlorine: ± 5% or ± 0.04 mg/L (whichever is greater) from 0 - 5 mg/L Cl₂; ± 10% from 5 - 10 mg/L Cl₂
Weight (LB) 49.5
Sample Requirements Y-strainer filtration; Flow 100-1000 mL/min, 200-500 mL/min (optimal); 0.3 - 5.2 bar (4.5 - 75 psi)
Power Requirements 100-240 VAC ±10%, 50/60 Hz; 1 A
Method Type DPD
Temperature range Sample: 5 - 40 °C (41 - 104 °F)
Parameters Chlorine & Turbidity
Lamp Type LED
Range 2 0 - 700 NTU / FNU / TE/F / FTU
