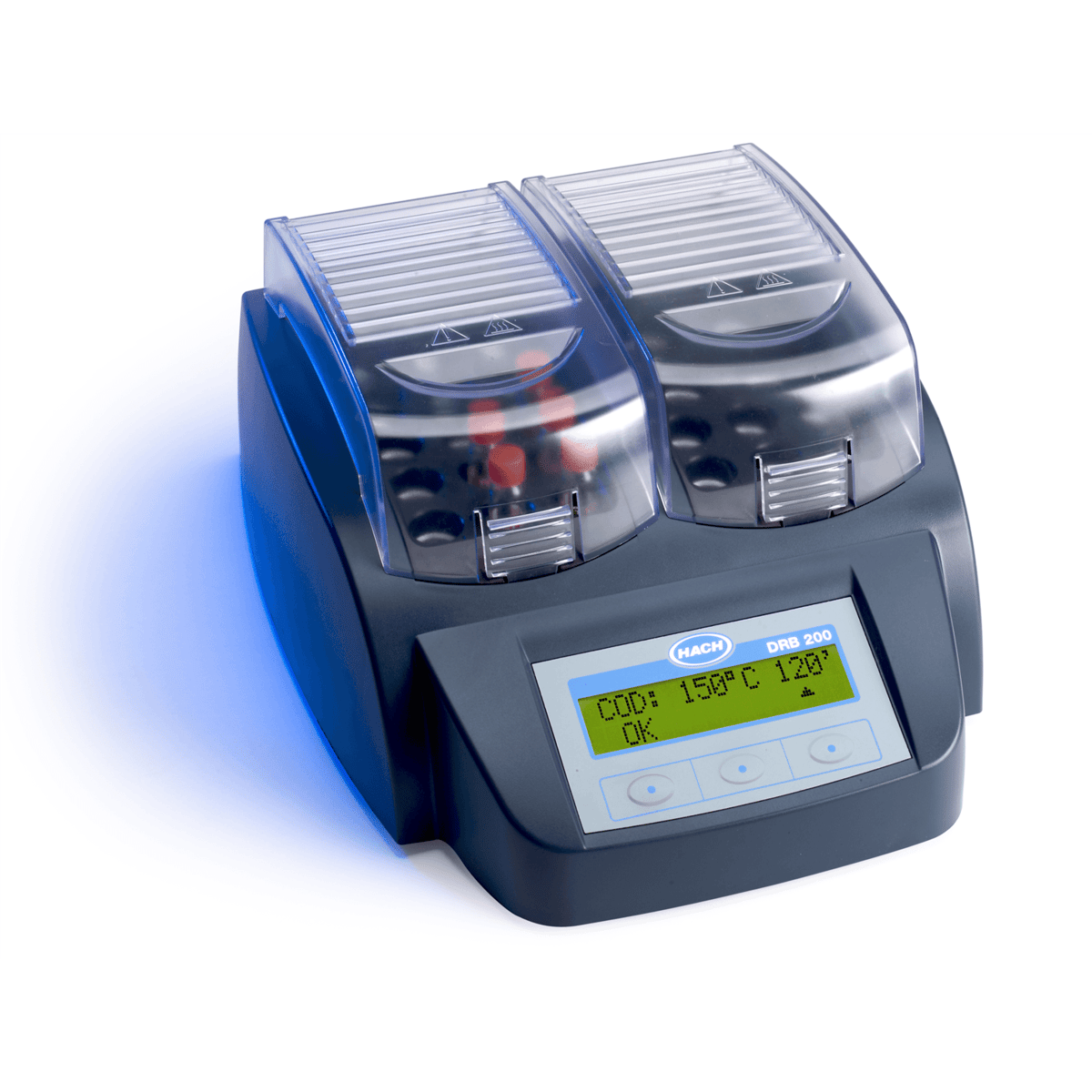

Hach DRB200 Digital Reactor Block, 12x13mm vial wells, 8x20 mm vial wells, 115 V, DRB200-04

$2,219.00 | EA
Product #: 703364
Mfr. Part #: DRB200-04

This item is in stock

Description

The Hach DRB200 Digital Reactor Block comes pre-programmed for all standard digestions ( e.g. phophorus, COD, Nitrogen TNTplus vial tests, etc) and is freely programmable for user-specific digestions. The unit comes standard with three pre-programmed temperature profiles and six freely programmable storage spaces. Digestion temperatures available range between 37 °C and 150 °C in 1 °C steps, and digestion time settings range between 1 and 480 minutes. The illuminated digital display indicates remaining time/temperature and operator guidance. This unit contains two separate controllable digestion blocks with separate protection covers. It is a dual-block unit. One block has 12x13mm holes and the other block has 8x20mm holes.

Features

  • The Hach DRB200 Dry Thermostat Reactor provides unique one-key operation. Programs for Hach procedures with digestion are preprogrammed into the instrument. And it’s fast—the block heats from 20 to 150°C in less than 10 minutes.

  • The fully insulated heater block of the DRB200 reactor means there can be no skin contact with the heater block. Temperature safeguards are provided to prevent overheating. The lids are transparent and lock do deter premature checking of the progress of the reaction. And the reactor will emit an audible signal and automatically shutdown at the end of the run.

  • Use the DRB200 reactor for digestions for metals analysis, digestions for nutrients analysis, or culture biological samples. Control temperatures in the reactor from 37 to 165°C in 1°C increments. In addition to preprogrammed digestion methods, use the reactor to program and store up to three custom methods.

  • The DRB200 reactor can heat solutions in round vials of two different sizes. Small, 16-mm diameter vial wells are suitable for Hach COD, UniCell, TOC, and Test ’N Tube vials. Larger, 20-mm diameter vial wells are intended for sample preparation reaction vessels using the Metals Prep Set.

  • Two heat blocks in the DRB200 Dual Block Models reactor give the operator independent control of two temperatures and durations. Use this option to run two programs at the same time. A Single Block DRB Reactor cannot be upgraded to a Dual Block Model at a later time.

Includes

Includes: digital block reactor, power cord and operating manual

Product Specifications

Number Of Cuvettes 12 vials x 13 mm + 8 vials x 20 mm
Depth 12
Weight Dual block: 2.8 kg
Power Requirements 117 V AC, 50 - 60 Hz
Height 5.7
Temperature range 37 - 165 ºC (99 - 329 ºF)
Temperature Stability ± 2 ºC
Heating Rate 20 to 150 ºC in 10 minutes
