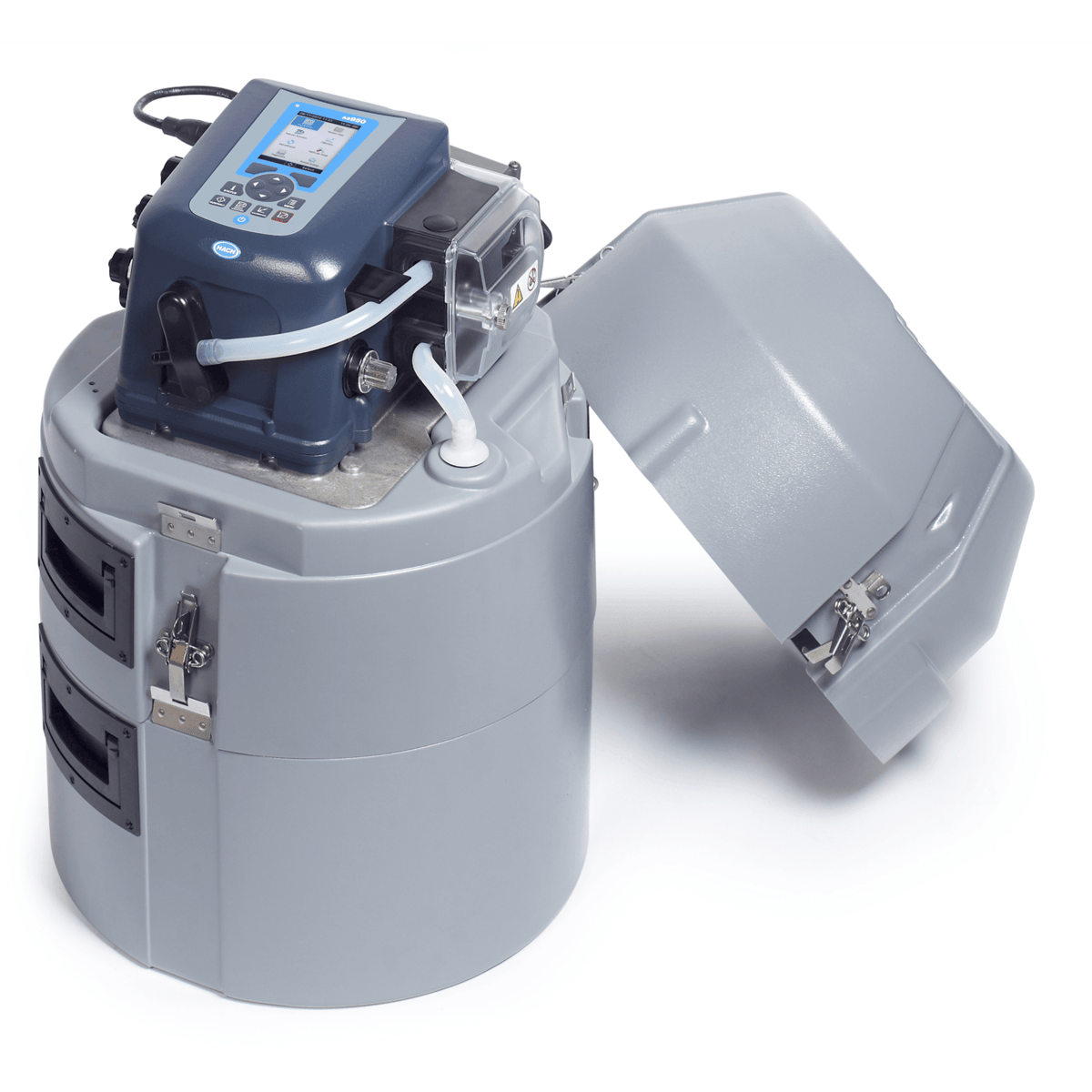

Hach AS950 Portable Compact Sampler Bundle, 12V, w/ 2.5 Gallon Bottle, ASP.CXXXC121XX

$5,730.00 | EA
Product #: 703227
Mfr. Part #: ASP.CXXXC121XX

This item is in stock

Description

AS950's Portable Compact 2.5-Gal 12V Sampler simplifies water collection with a large, full-color display. The intuitive interface allows for single-screen programming, USB upload/download capabilities, and the ability to copy programs from one sampler to another, saving time. An error alert and status screen eliminate uncertainty and simplify troubleshooting, providing confidence in your sampling. Weighing only 28 pounds (12.7 kg), the AS950 Portable Sampler 12V is a portable sampler capable of operation in remote settings on its battery.

Features

  • The large full colour display and intuitive programming give you access to all your programmable criteria on a single screen - eliminating scrolling through menus and supporting error-free operation.

  • The AS950 is the only sampler that utilises a USB drive to upload and download data and copy programs from one sampler to another.

  • The program status screen instantly communicates alarms, missed samples and program progress for quick and easy troubleshooting.

  • Weighing only 12.7 kg, the AS950 portable sampler is designed for accuracy and convenience. Quickly switch between composite and discrete sampling in the field. Configurable for single or multiple bottle applications, it is specifically designed for use in 18-inch manholes.

  • Spring-mounted rollers provide long tubing life keeping maintenance costs low. The desiccant and pump tubing can easily be accessed; the replacement is possible without any tools. The rugged see-through pump cover is made for a quick visual inspection.

Includes

1 ea. AS950 controller on compact portable base 1 ea. 12V battery (8754400) 1 ea. Bottle kit (PC010030) includes 2.5 gallon polyethylene bottle w/cap (1918) and full bottle shut-off (8996) 1 ea. 25' vinyl intake tubing (920) 1 ea. strainer (926 (Battery charger 8753500US sold separately)

Product Specifications

Bottle Set Composite 2.5 gallon polyethylene bottle kit
Weight 15 kg
Brand Hach
Lock Function Access code protection prevents tampering
Sensor Ports None
Housing Material POLYCARBONATE/ABS
Inputs One 0/4-20 mA input for flow pacing
Power Requirements 12V Battery
Operating Mode Continuous or non-continuous
Vertical Lift Maximum of 28 ft using 29 ft of 3/8-in. vinyl intake tube at sea level at 20-25°C (68-77°F)
Suction Hose Outer Diameter 1/4" and 3/8" ID PTFE-lined Polyethylene with protective outer cover available in clear and black
Display 1/4 VGA, Color; self-prompting/menu-driven program
Sample Container 1 - 2.5 Gallon
Base Configuration Portable Compact
Manual Sampling Initiates a sample collection independent of program in progress
Pump Flow Rate 4.8 L/min (1.25 gpm) at 1 m (3 ft) vertical lift with 3/8-in intake tube typical
