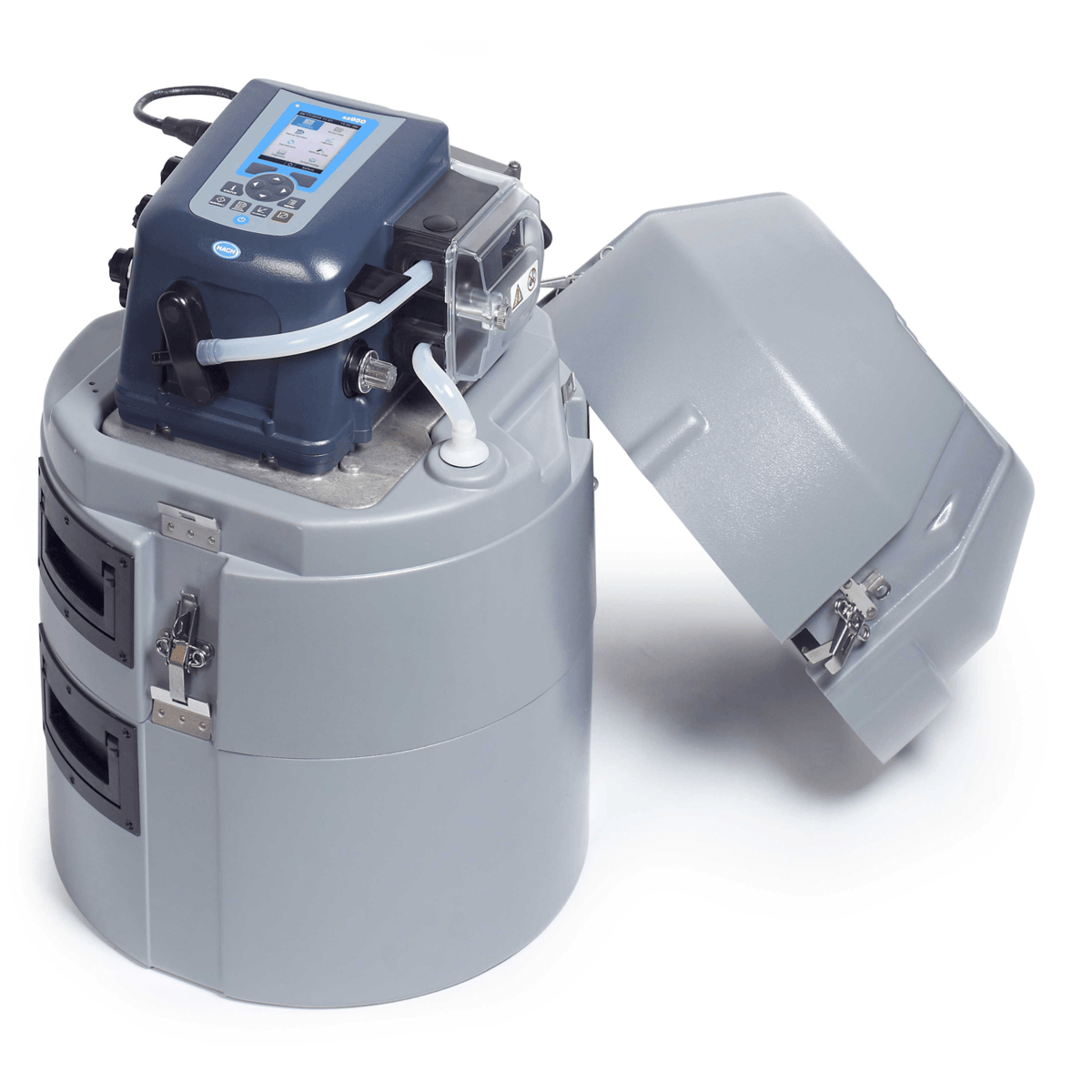

AS950's Portable Compact 2.5-Gal 115V Sampler simplifies water collection with a large, full-color display. The intuitive interface allows for single-screen programming, USB upload/download capabilities, and the ability to copy programs from one sampler to another, saving time. An error alert and status screen eliminate uncertainty and simplify troubleshooting, providing confidence in your sampling. Weighing only 28 pounds (12.7 kg), the AS950 Portable Sampler 115V is a portable sampler capable of operation in smaller spaces where a power source is available Applications: Typically used in pre-treatment water sampling or for compliance in wastewater, composite samplers can also be used to collect wastewater samples for qualified laboratory detection of SARS-CoV-2 (the virus that causes COVID-19). Such testing has been shown to enable early detection in communities, which in turn can lead to focused containment efforts.
- The large full color display and intuitive programming give you access to all your programmable criteria on a single screen
- The AS950 is the only sampler that utilizes a USB drive to upload and download data and copy programs from one sampler to another.
- The program status screen instantly communicates alarms, missed samples and program progress for quick and easy troubleshooting.
- Weighing only 12.7 kg, the AS950 Portable Sampler is designed for accuracy and convenience.
Bottle Set | Composite 2.5 gallon polyethylene bottle kit |
Weight | 15 kg |
Brand | Hach |
Lock Function | Access code protection prevents tampering |
Sensor Ports | None |
Housing Material | POLYCARBONATE/ABS |
Inputs | One 0/4-20 mA input for flow pacing |
Power Requirements | 115V Power Supply |
Operating Mode | Continuous or non-continuous |
Vertical Lift | Maximum of 28 ft using 29 ft of 3/8-in. vinyl intake tube at sea level at 20-25°C (68-77°F) |
Suction Hose Outer Diameter | 1/4" and 3/8" ID PTFE-lined Polyethylene with protective outer cover available in clear and black |
Display | 1/4 VGA, Color; self-prompting/menu-driven program |
Sample Container | 1 - 2.5 Gallon |
Base Configuration | Portable Compact |
Manual Sampling | Initiates a sample collection independent of program in progress |
Pump Flow Rate | 4.8 L/min (1.25 gpm) at 1 m (3 ft) vertical lift with 3/8-in intake tube typical |
