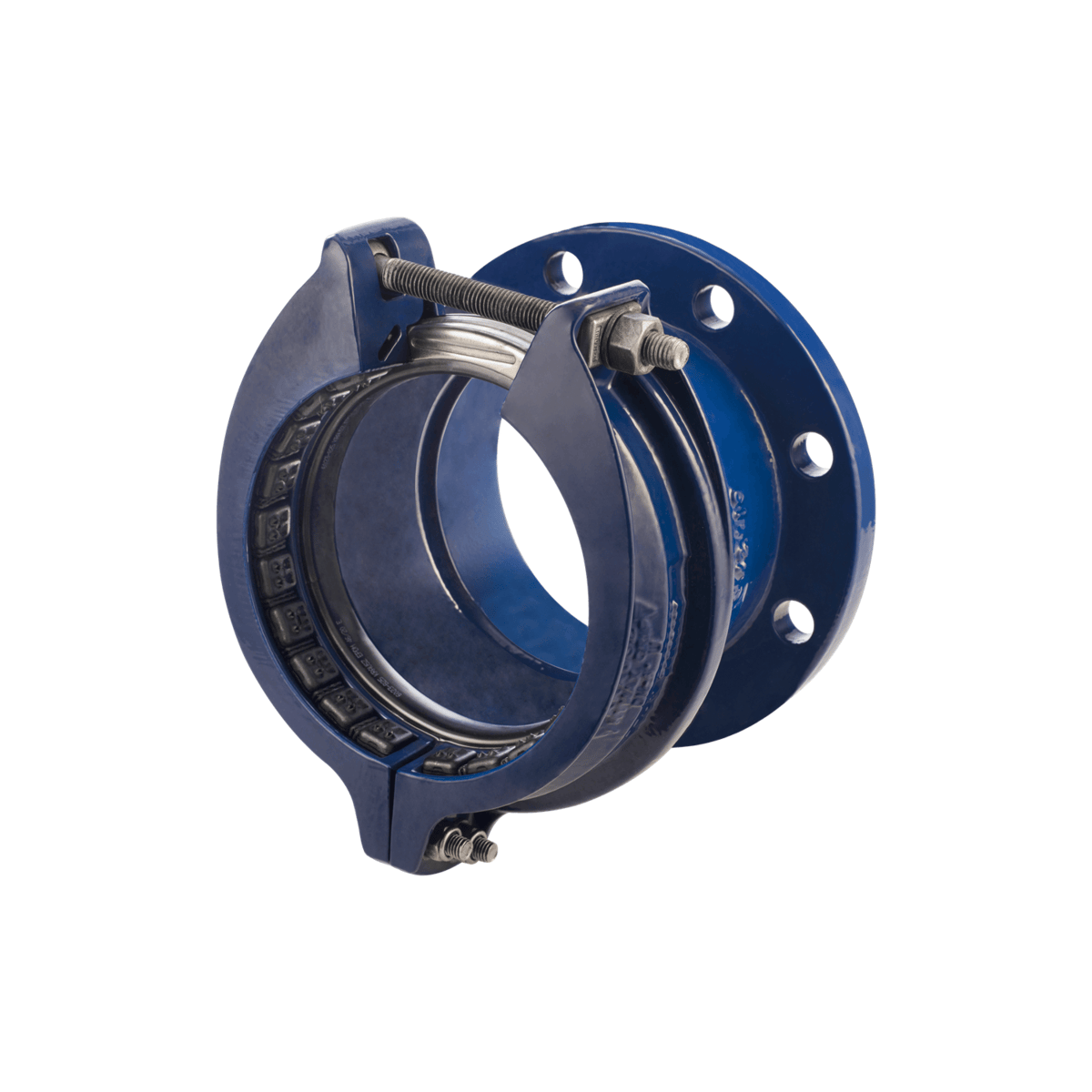

HYMAX GRIP F/A Oval1.5"/2"(1.54-2.64) 1.5" Oval Flg

$382.00 | EA
QuantityPrice
1 – 2$382.00
3 – 4$362.90
5 +$343.80
Product #: 103624
Mfr. Part #: 130-96-015039-15-16

Out of Stock - Ships in 1 Days

Description

HYMAX GRIP® Flange Adaptor joins and restrains a wide selection of pipes of different types and diameters, easily and reliably. Due to its patented design, it allows the joining of pipes of the same or different materials and diamters, and preventing axial pipe movement.

Features

  • Joins and Restrains a wide range of pipe types and diameters

  • Unique radial gripping system prevents pipe motion

  • Ready to use, Stab-Fit design

  • Suitable for use with ductile iron, cast iron, steel, PVC, and HDPE (pipe stiffeners or inserts required)

  • Allows 4° dynamic deflection, reducing future damage

  • Patented hydraulically-assisted gasket with 2-stage sealing

  • Simple transition for inserting flanged devices

  • Universal gripping teeth fit metal and plastic pipes

Product Specifications

Weight (LB) 10
Pipe Outside Diameter Range (IN) 1.54 to 2.64
Length (IN) 7-1/10
Nominal Pipe Size (IN) 1-1/2 x 2
Application JOIN
Brand Mueller HYMAX
Type HYMAX GRIP
Restraint YES
