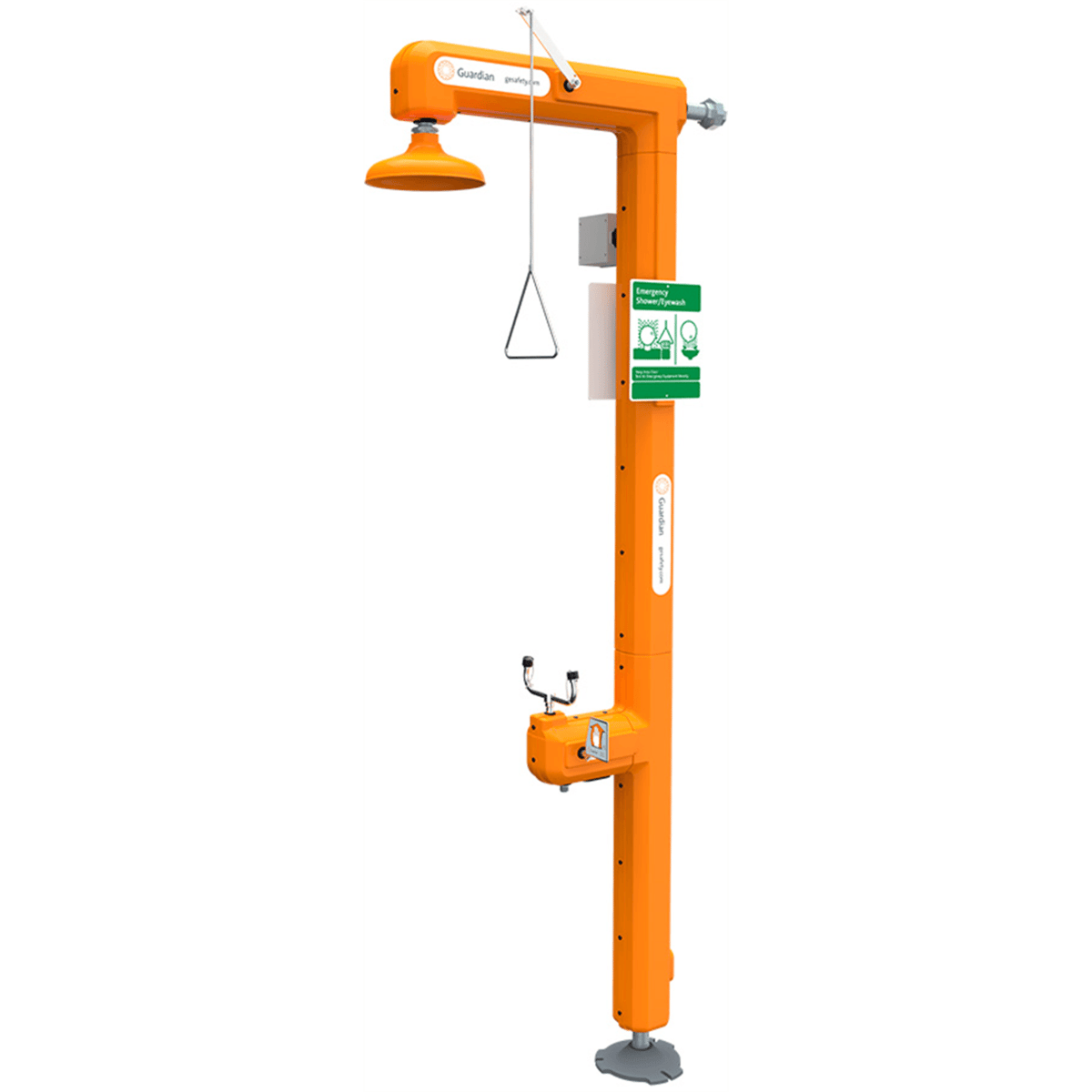

Guardian Heat Traced Combination Safety Station, Top Inlet, Alarm Horn and Light, C1D2 Rated GFR3107
Description
The Guardian® heated safety station includes an eyewash, shower, top inlet, alarm horn, light, and remote sensing capability and is rated for class I, division 2 environments. The electric heat-traced station is meant to prevent freezing even in extreme conditions. Thermostat-regulated units are heated by a self-limiting heat-tracing cable wrapped around internal pipe. Units are intended for cold weather down to -40°F. Unit is fully wired at factory and requires 120 VAC single phase power supply. Features 10" diameter ABS plastic shower head with 20 GPM flow control and a freeze-resistant eyewash spray head assembly with float-off dust covers and internal flow control.
Features
- Ideal for use in areas where electricity is available and emergency stations need protection from freezing
- This option includes alarm horn, light and remote sensing capability
- Factory tested and fully assembled prior to shipment
Includes
ANSI-compliant identification sign and inspection tag, Nylon flip-top dust cover
Product Specifications
Visual Signal Candle Power | 2,000,000 |
Visual Signal Flash Rate | 60 |
Visual Signal Flash Rate UOM | FPM |
Voltage | 120 |
Valve Material | BRASS |
Audible Signal Volume | 100 db at 10' |
Shower Head Diameter (IN) | 10 |
Supply Inlet Size | 1-1/4 |
Shower Head Material | PLASTIC |
Pipe & Fittings Material | Galvanized Schedule 40 Steel |
Supply Inlet Size UOM | IN |
Supply Inlet Type | NPT(F) |
Spray Head Material | Chrome Plated Brass |
