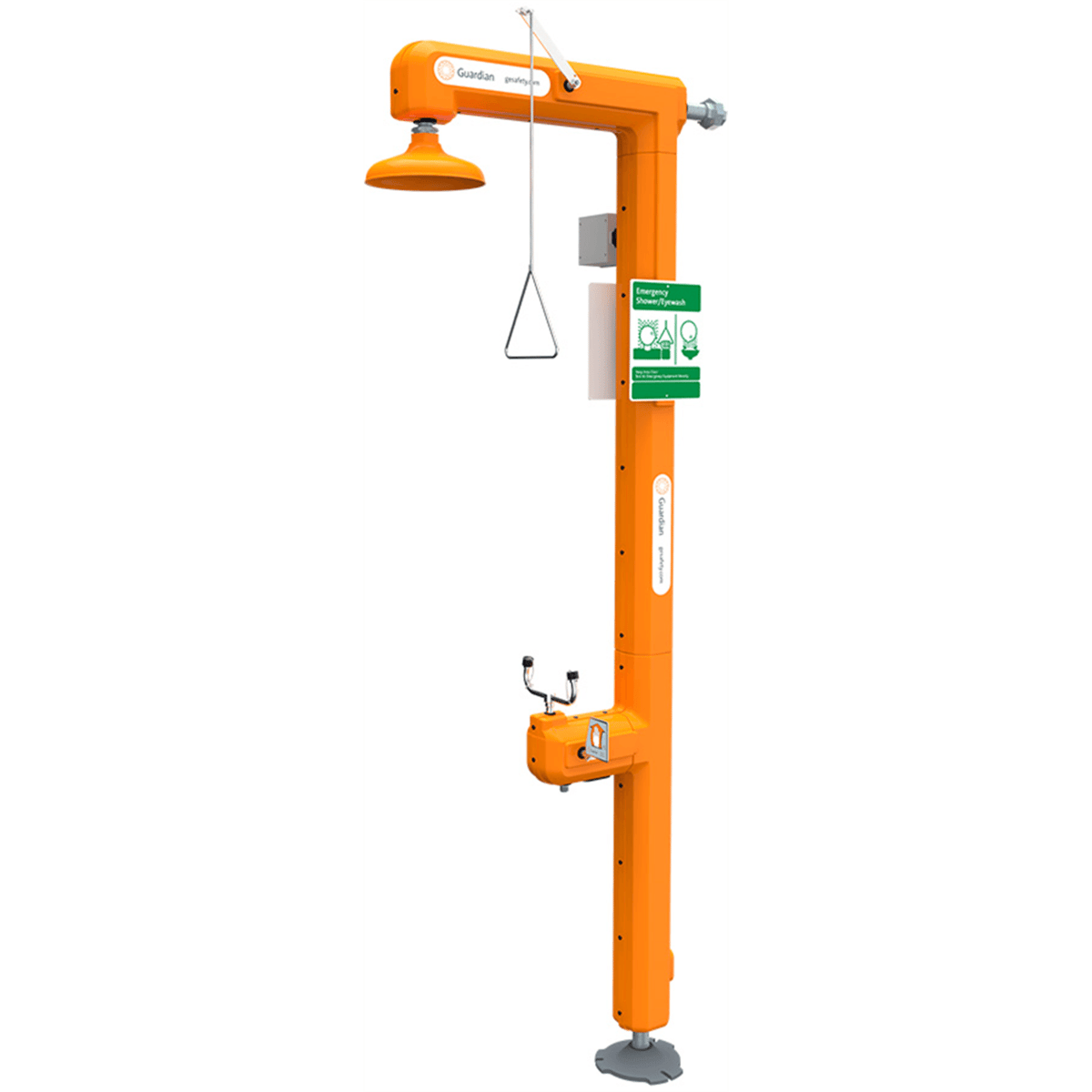

Guardian Heat Traced Combination Safety Station, Plastic Shower Head, Top Inlet, C1D2 Rated GFR3100
Description
The Guardian® heated safety station includes an eyewash, shower, and top inlet and is rated for class I, division 2 environments. The electric heat-traced station is meant to prevent freezing even in extreme conditions. Thermostat-regulated units are heated by a self-limiting heat-tracing cable wrapped around internal pipe. Units are intended for cold weather down to -40°F. Unit is fully wired at factory and requires 120 VAC single phase power supply. Features 10 IN diameter ABS plastic shower head with 20 GPM flow control and a freeze resistant eyewash spray head assembly with float-off dust covers and internal flow control.
Features
Ideal for use in areas where electricity is available and emergency stations need protection from freezing
Factory tested and fully assembled prior to shipment
Includes
ANSI-compliant identification sign and inspection tag, Nylon flip-top dust cover
Product Specifications
Supply Inlet Type | NPT(F) |
Spray Head Material | Chrome Plated Brass |
Valve Material | BRASS |
Shower Head Diameter (IN) | 10 |
Supply Inlet Size | 1-1/4 |
Shower Head Material | PLASTIC |
Pipe & Fittings Material | Galvanized Schedule 40 Steel |
Supply Inlet Size UOM | IN |
