Guardian Combination Safety Station, Plastic Shower Head, SS Bowl, Scald Protection Valve G1943

By Guardian
$1,865.69 | EA
Product #: 400196
Mfr. Part #: G1943

This item is in stock

Back

Description

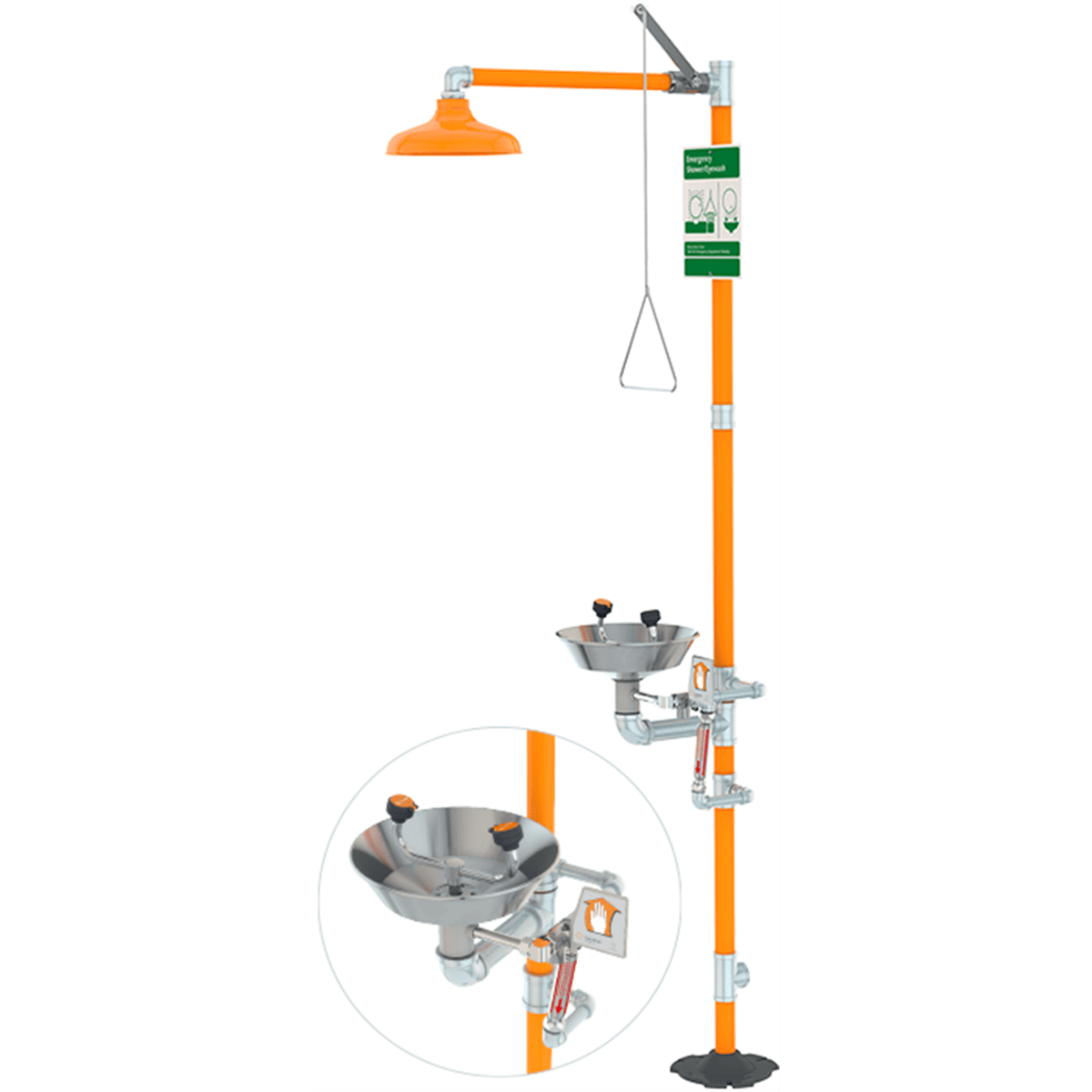

The Guardian® Combination Safety Station with eyewash and safety shower features an 11-1/8" diameter stainless steel bowl and 10" diameter ABS plastic shower head with 20 GPM flow control. Unit is furnished with a temperature-actuated scald protection valve. When water temperature rises above 95°F, valve automatically opens to allow water to circulate through unit until water temperature returns to below 95°F. Also features stay-open ball valves and flag handle. Eyewash includes two GS-Plus™ spray-type outlet heads that deliver a flood of water for rinsing eyes. Spray heads have a "flip top" dust cover, internal flow control, and filter to remove impurities from the water flow.

Features

  • Valve and spray head assemblies are factory assembled and water tested prior to shipment

Includes

ANSI-compliant identification sign and inspection tag, Nylon flip-top dust cover

Product Specifications

Supply Inlet Type NPT(F)
Spray Head Material POLYPROPYLENE
Valve Material CHROME PLATED BRASS
Shower Head Diameter (IN) 10
Bowl Diameter (IN) 11-1/8
Supply Inlet Size 1-1/4
Eyewash Bowl Material STAINLESS STEEL
Shower Head Material PLASTIC
Pipe & Fittings Material Galvanized Schedule 40 Steel furnished with Polyethylene Pipe
Supply Inlet Size UOM IN
