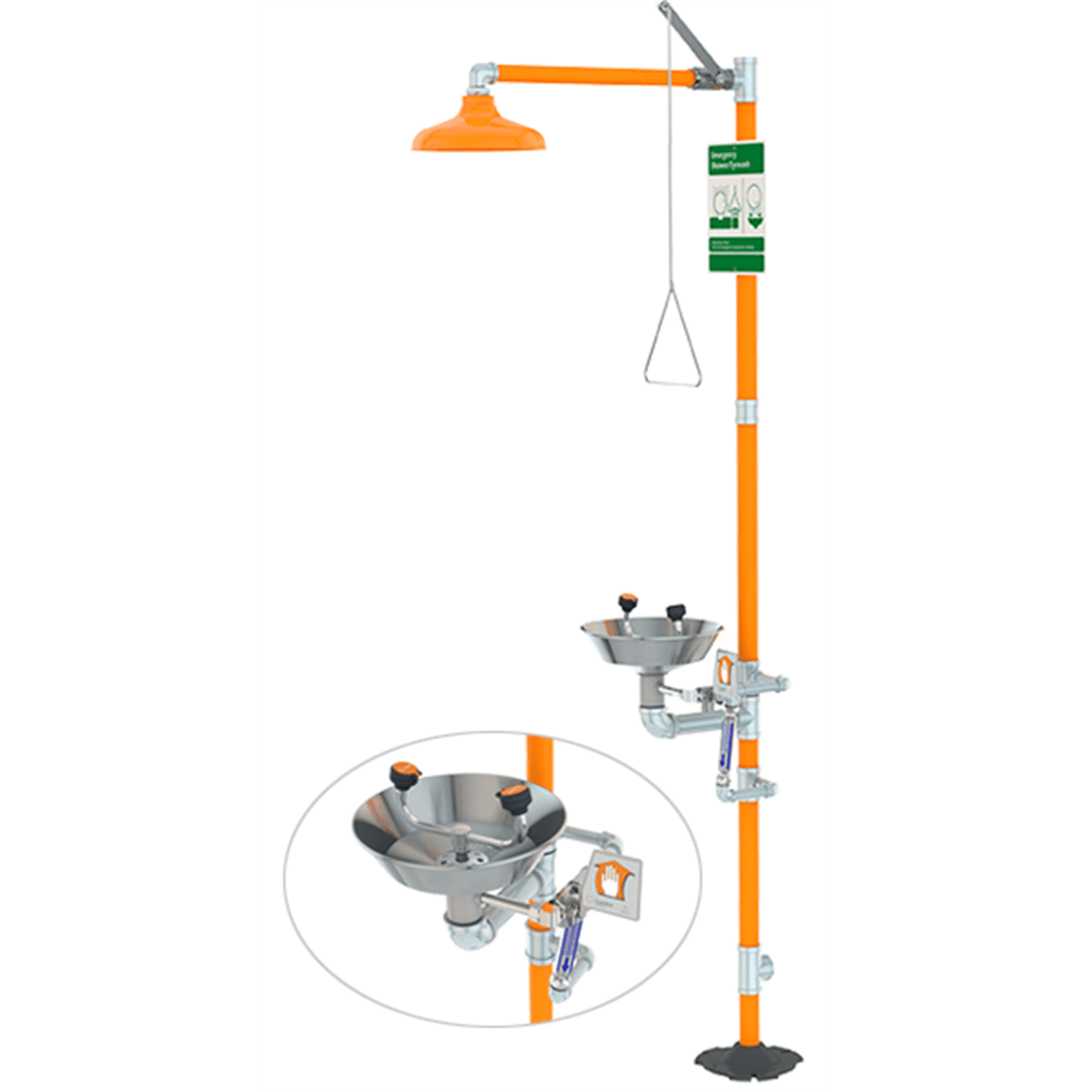

Guardian Combination Safety Station, Plastic Shower Head, SS Bowl, Freeze Protection Valve G1941

By Guardian
$1,799.99 | EA
Product #: 400194
Mfr. Part #: G1941

This item is in stock

Back

Description

The Guardian® Combination Safety Station with eyewash and safety shower features an 11-1/8" diameter stainless steel bowl and 10" diameter ABS plastic shower head with 20 GPM flow control. Unit is furnished with a temperature-actuated freeze protection valve. When water temperature drops below 40°F, valve automatically opens to allow water to circulate through unit, preventing water from freezing. Also features stay-open ball valves and flag handle. Eyewash includes two GS-Plus™ spray-type outlet heads that deliver a flood of water for rinsing eyes. Spray heads have a "flip top" dust cover, internal flow control, and filter to remove impurities from the water flow.

Features

    Valve and spray head assemblies are factory assembled and water tested prior to shipment

Includes

ANSI-compliant identification sign and inspection tag, Nylon flip-top dust cover

Product Specifications

Supply Inlet TypeNPT(F)
Spray Head MaterialPOLYPROPYLENE
Valve MaterialCHROME PLATED BRASS
Shower Head Diameter (IN)10
Bowl Diameter (IN)11-1/8
Supply Inlet Size1-1/4
Eyewash Bowl MaterialSTAINLESS STEEL
Shower Head MaterialPLASTIC
Pipe & Fittings MaterialGalvanized Schedule 40 Steel furnished with Polyethylene Pipe
Supply Inlet Size UOMIN
