Flowline EchoSpan Ultrasonic Level Transmitters

Description

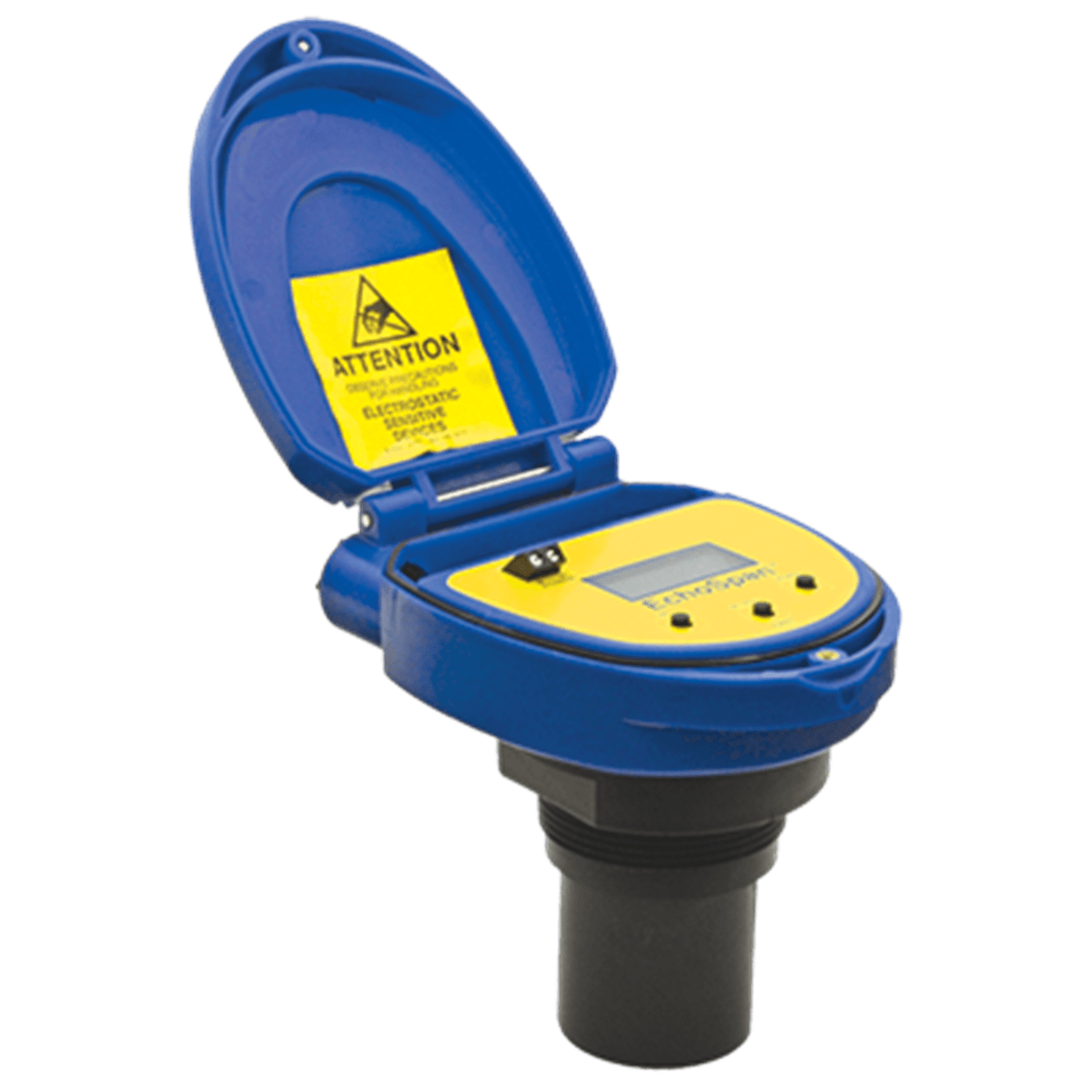

The general purpose ultrasonic transmitter provides continuous level measurement up to 32.8’ (10m) with a 4-20 mA signal output, and is configured via its integral push button display module. This non-contact liquid level sensor is well suited for corrosive, ultrapure, sticky or waste liquids, and is selected for bulk storage, tanker truck and neutralization tank applications.
The Fob USB adapter is required for configuration via the WebCal software. One fob adapter can be used to configure multiple Flowline transmitters.

Features

• Offered in 4 measurement ranges from 9.8’ (3m) to 32.8’ (10m)


• Configuration is simple via integral push button display module


• LCD display indicates level in inches, centimeters and percentages


• Narrow 2 or 3 beam width for applications with limited measurement space


• Fail-safe intelligence and diagnostic feedback for simple troubleshooting


• PVDF transducer and NEMA 4X polycarbonate enclosure for corrosive liquids


• Automatic temperature compensation for accurate measurement
