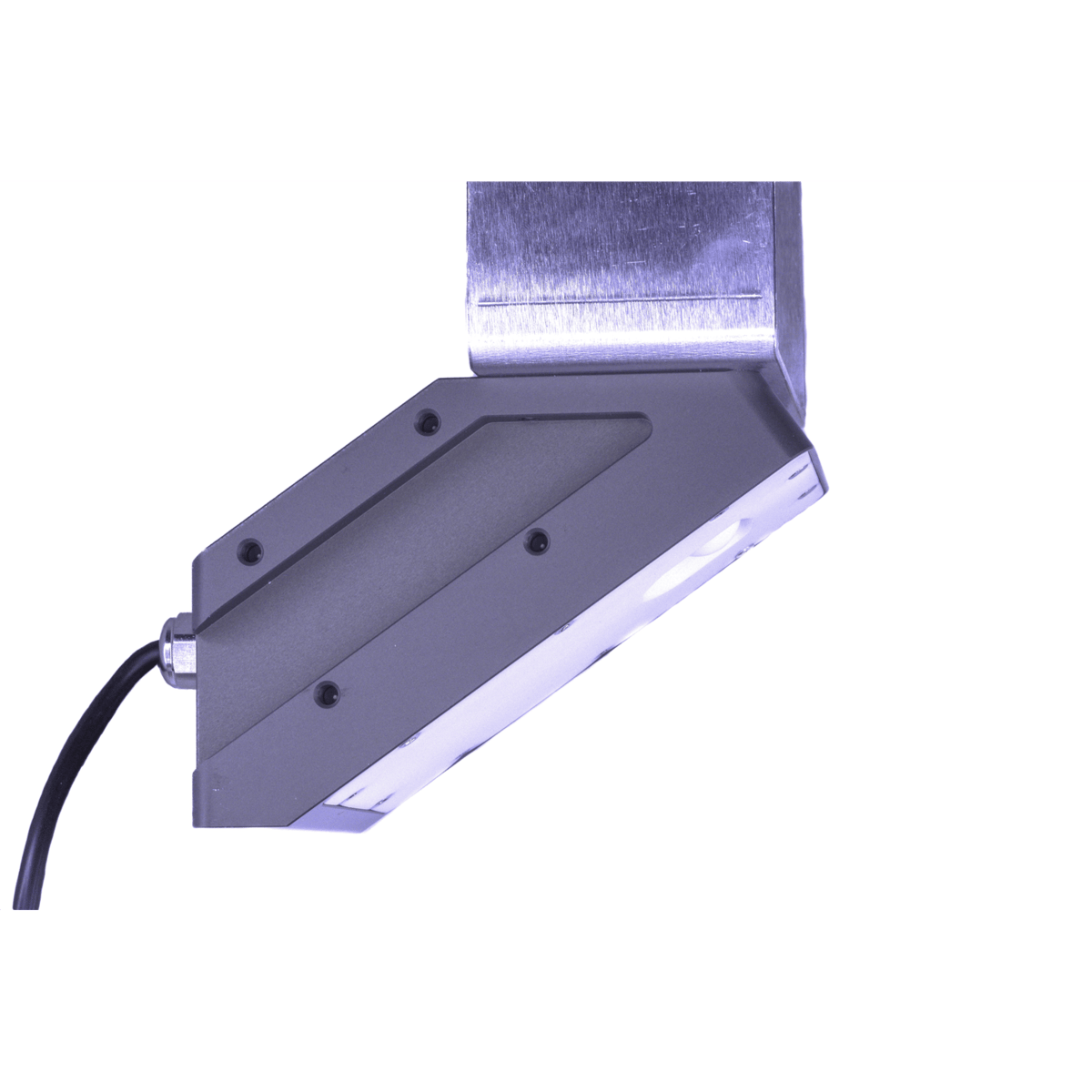

FlexFlow IQ Sewer Flow Monitoring Kit GSM

Description

FlexFlow IQ flow sensors offer maintenance-free, non-contact open channel monitoring, including sewer flow monitoring that can be portable or permanent. FlexFlow is particularly suited for monitoring open channels, utilizing a sophisticated combination of digital doppler radar velocity sensing and radar depth sensing to provide continuous flow measurements. FlexFlow IQ Kit supports sewer flow and rainfall instrumentation with data analytics that support Utilities, including: • Rainfall Derived Infiltration and Inflow (RDII) Characterization and Quantification • Developing and Calibrating Hydraulic Models • Sewer Condition Assessment • Capacity Assessment and Overflow Baselining • Capacity and Condition Improvements • Operation and Maintenance Activities • Support Related to Consent Decrees • Integrates with SCADA and ESRI Applications • Ultra-low Power Consumption for Extended Battery Life

Features

• Flow, level and velocity outputs. Standard interfaces for communication with data loggers and other devices.


• Non-contact measurement


• Uses rotatable swivel and easy mounting. Sensor is away from the water, making the installation safer to achieve.


• Extremely low power consumption, Anti-polarity protection.


• Compact and solid design – long sensor life with minimal maintenance


• RS-485 interface – allows a connection cable length of up to 1,000 m, allowing data logger and power source to be situated further away.


• Wide range of power supply from 7-32 V (typically 12 / 24 V) – allows differing power supplies such as solar panel, battery or grid.


• SUITABLE APPLICATIONS are Rivers/Streams, Sewer Systems, Canals, Irrigation Canals, Process Water Canals, Influent/Effluent

Includes

FlexFlow IQ for GSM Cellular Networks, Installation kit for sewer and open channel applications
