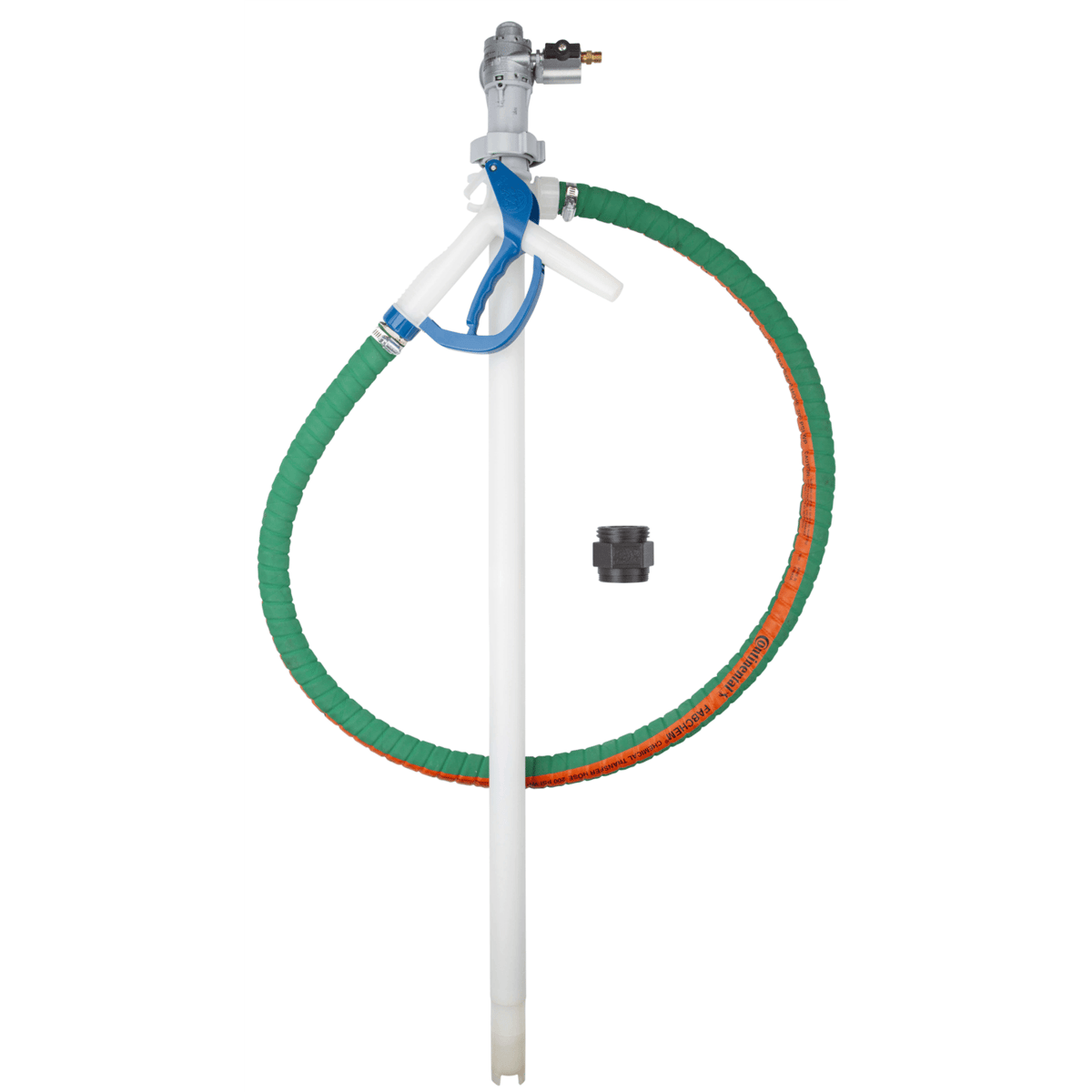

FTI SFV40/M6 Air Motor and UHMWPE Hose Drum Pump Kit, 111670
Description
FTI SFV40 Series Drum/Barrel Pump Kit with Polypropylene/PVDF Outer Tube, pump & Air motor for pumping Water Treatment Chemicals.
Features
- Can pump Aluminum Sulfate, Ferric Chloride, Hydrochloric Acid, Hydrofluosilicic Acid, PAC, Permanganates, Sodium Bisulfate & Sodium Hypochlorite
- variable speed motor
- Pump wetted materials: PP/PVDF-Outer Tube, Alloy 625 -Shaft, FKM-o-rings, PP/PTFE/ETFE-Internals.
- 400 Watts of output power, 300 to 9,000 RPM, 80-100 Psi @ 15-32 cfm.
Includes
SFV-40 PP/PVDF 40" pump, M6 Air Motor, 5' UHMWPE hose, Hose clamp, PVDF Nozzle, PP drum adapter & wall mount bracket
Product Specifications
Specific Gravity | 2.0 |
Tube Length | 40 |
Tube Length UOM | IN |
Discharge Head (Max) (FT) | 32 |
Tube Diameter (IN) | 1-5/16 |
Flow Rate (Max) (GPM) | 31 |
Discharge Hose Type | Hose Barb |
Viscosity | 1200 |
Discharge Hose | 3/4 |
Discharge Hose UOM | IN |
Brand | Finish Thompson, Inc. |
Viscosity UOM | cP |
Documents
