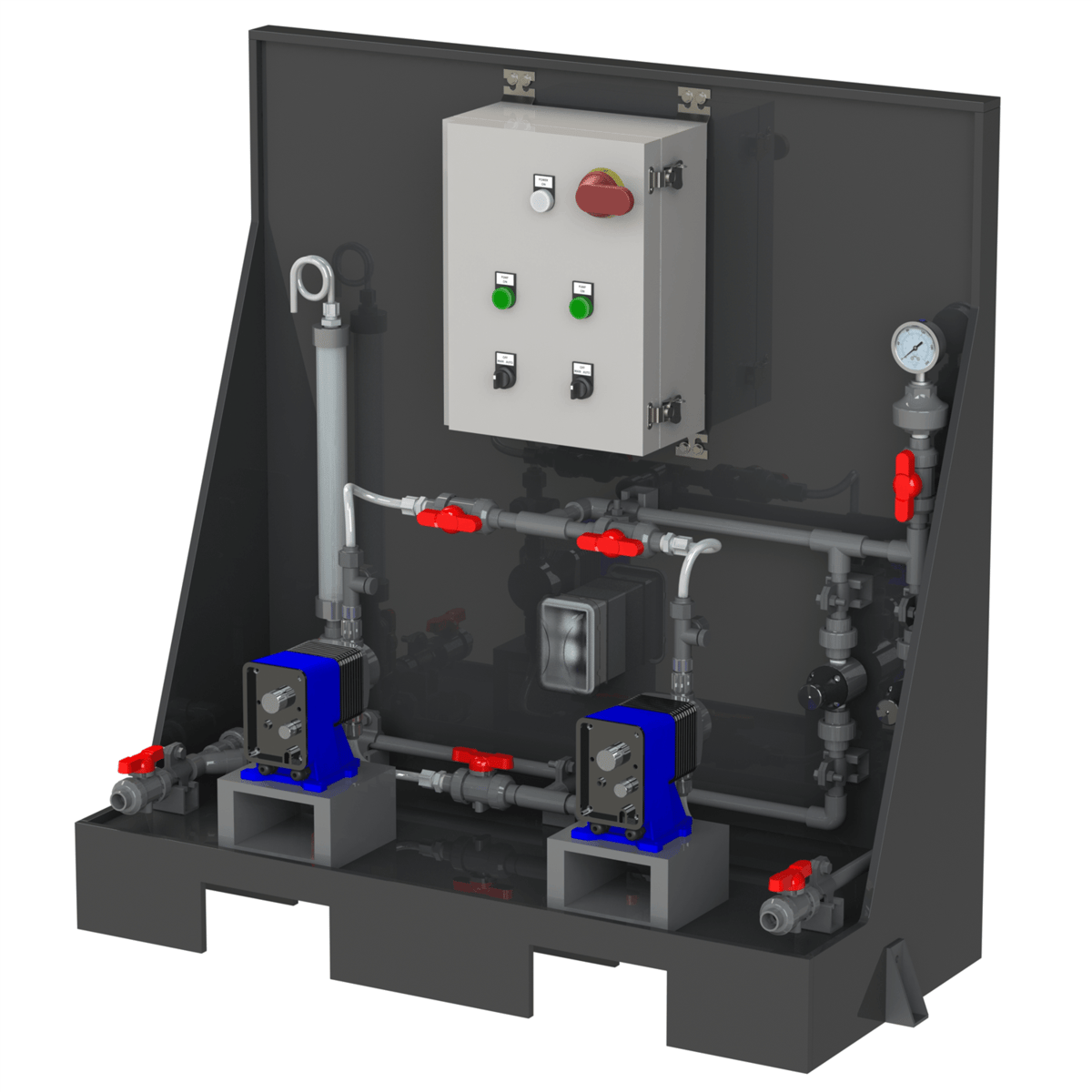

Call for Pricing Duplex Integrated Chemical Metering Skid System, M200-CMPD

Details

Description

This System is a “Call for Pricing Item This Integrated Chemical Metering platform solution entails a remarkably adaptable, pre-plumbed system that facilitates the addition of pumps either on-site or through pre-installation and testing before delivery. This methodology expedites the installation process while maintaining the system's reliability and its effectiveness across various water treatment applications. This platform, comprising duplex metering pump packages, provides unparalleled flexibility, convenience, and swift delivery. These packages are exceptionally well-suited for enhancing reliability in diverse water treatment applications. The methodology empowers users to obtain pre-plumbed systems and customize them by adding pumps on-site. Alternatively, the customer can choose their preferred brand of metering pump/s, which can be installed and tested before delivery. The control panel options offer users a range of sophistication, including: 1. Simple Terminal Box (TB) for signal wire routing. 2. Local Control Panel One (LCP1) - Provides terminal routing and incorporates dual MOA switches with a power cord and breakers. 3. Local Control Panel Two (LCP2) - Adds power and run lights, along with a power disconnect to the LCP1. Ordering: Tailored configurations provide features such as feed verification, automatic switchover, and the option to integrate on-board controllers or timer packages. Installation and startup services are also available for these systems. Due to the many options that are offered with these skid units, please call Core & Main Supply at 1-888-885-2673 and talk with our Product Specialist Team about available options and pricing. Options to know before you call: · Select your Configuration: (Simplex Unit, Duplex Unit) · Who will Supply the Pump: (Use Your own Pump, Purchase Pump with the Unit) · Type of Pipe to be Used: (CPVC, PVC, Stainless Steel Tube, PVDF Kynar) · Select Pipe Size: (1/2, 3/4") · Select Pump Manufacturer: (Grundfos, LMI, Pulsafeeder, Stenner, Other) · Select Calibration Column Size: (250 ml, 500 ml, 1000 ml, 2000 ml) · Select Elastomer Type: (Viton, EPDM, Teflon) · Include Wye Strainer: (Yes/No) · Include Pressure Relief Valve: (Yes/No) · Include Vented Ball Valve: (Yes/No) · Include Pulsation Dampener: (Yes/No) · Select Type of Control Box: (No Control Box, Terminal Box, Local Control Panel, Local Control Panel with Auto Switchover) Includes: One Piece Base & Back Plane, Two Plug Receptacle GFI Protected (Optional for the Simplex Skid), Inlet Isolation Valve, Suction Header -Pump Isolation Valves, Calibration Assembly with Isolation Valve, NPT Inlet / Outlet Connections, Pump Pedestals, Discharge Isolation Valve, Discharge Header- Pump isolation Valves, Pressure Gauge with Guard & Isolation, Back pressure valve (50 psi), Optional 1/2" PVC Inlet Y -Strainer, Optional Pressure Relief Valve.

Features

· Simplex & Duty / Standby Duplex Configuration

· Pre-Packaged and Tested

· Ready to Install– Plug N’ Play

· Reduces Hassle & Labor

· Expandable Choices and Sophistication

· Flexible Control Options

· Select Any Metering Pump Brand

· Output Range—1- 20 gallons per hour
