Atlantic Ultraviolet Megatron® Ultraviolet Water Purifier M50 120v Manual Wiper

By Atlantic Ultraviolet
Product #: 401503
Mfr. Part #: 24-0512A1

Drop Ship - Lead Times May Vary

Ships via Motor Freight
Back

Description

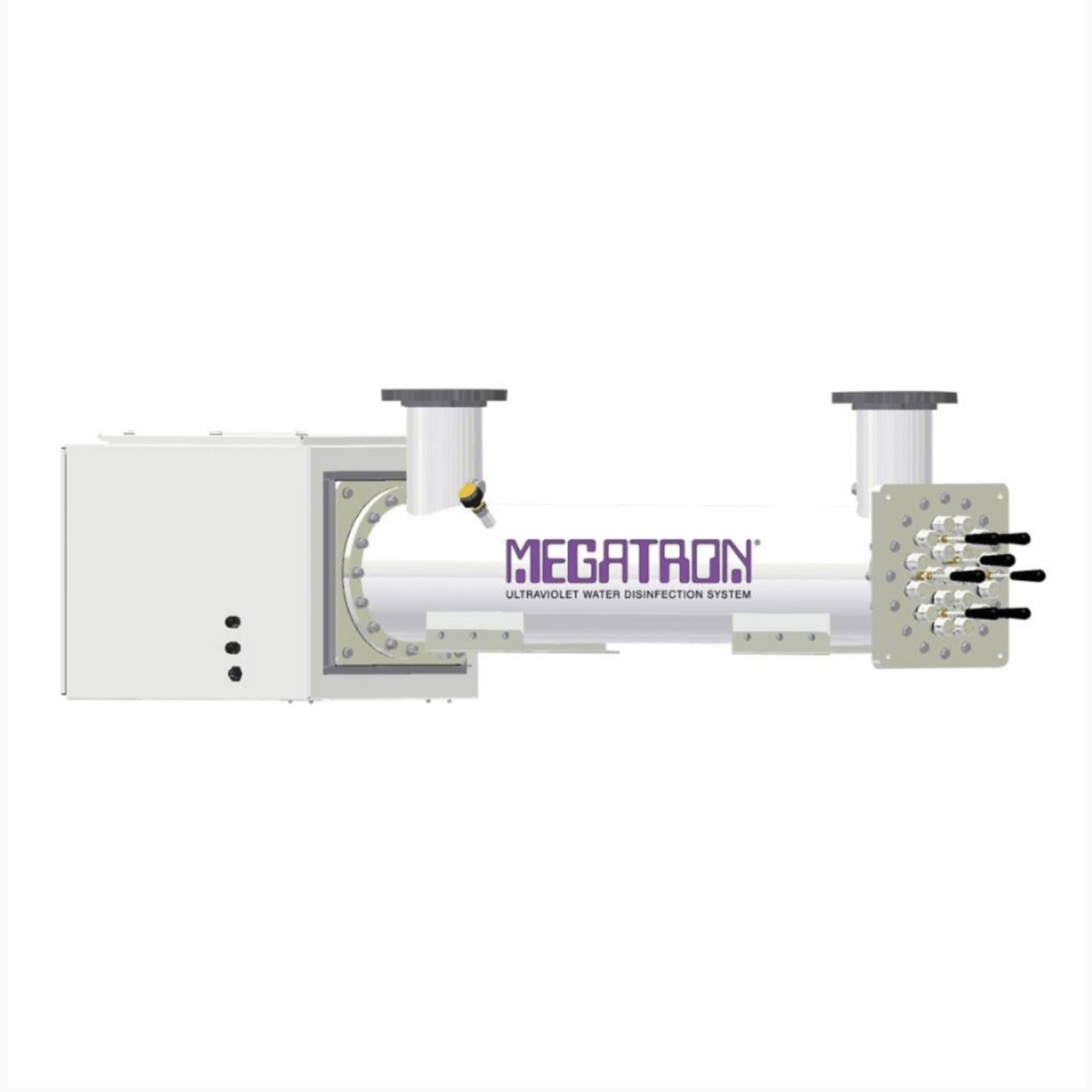

The Megatron® series of equipment consists of pressure vessel chambers containing multiple germicidal ultraviolet lamps, making each model a completely self-contained disinfection system. Multiple chambers can be combined to handle larger flows. The most featured of all of our water purifiers, this line is particularly suited to large-scale disinfection of industrial and municipal water and wastewater applications.

Features

  • Single Chamber/Multi-lamp ultraviolet water purifier

  • Type 316 Stainless Steel chamber, electropolished and passivated

  • Digital ultraviolet monitor displays intensity of ultraviolet energy within the chamber

  • Sight Port for viewing germicidal ultraviolet lamp operation

  • Control panel with lamp operation indicators, elapsed time indicator, removable heads, multiple drain fittings, access ports and sight port are all standard

  • Multiple models can be plumbed for higher flow rates

Product Specifications

High Purity Water Flow Rates (GPM) 90
Outlet Size (IN) 2
Clear Wastewater Flow Rates (GPM) 70
Clear Fresh Water Flow Rates (GPM) 100
Voltage (V) 120
Inlet Type NPT
Number of Lamps 4
Outlet Type NPT
Inlet Size (IN) 2
Unit Dimensions (IN) 100 X 16 X 14
