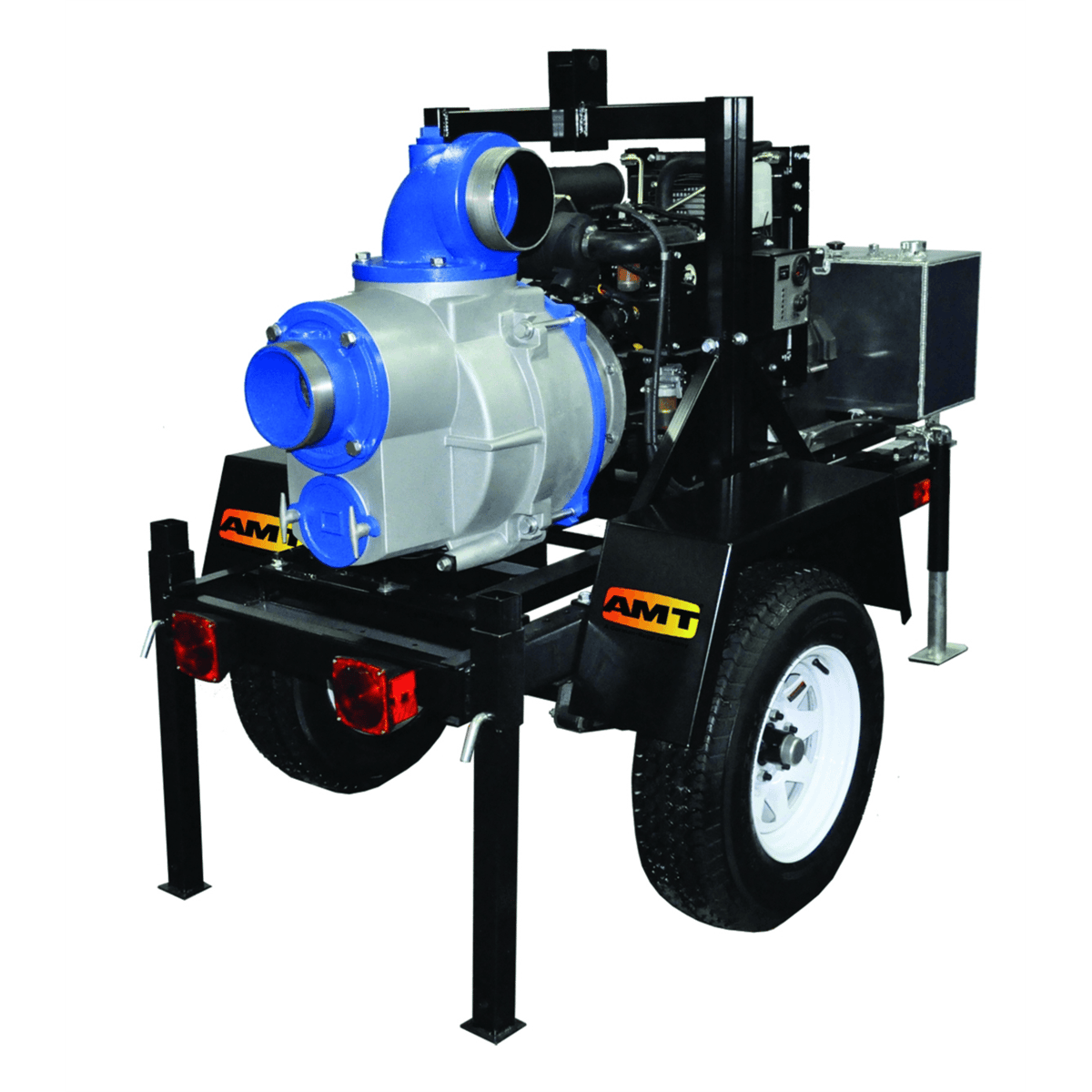

AMT 6" Self-Priming Engine Driven Trash Pump, Kohler KDW1003 Diesel, with Trailer, 5587-D6

Description

The AMT 6" Engine Driven Trash Pump is designed for applications requiring high volume flow and solid/ debris handling capabilities. Pumps are designed to handle liquids with solids content or dissolved solids and debris. Pump is constructed of heavy duty sand cast aluminum with cast iron and stainless steel internal parts for wear resistance and durability. Patented built-in slide mechanism features nylon and powder coated steel components that permit servicing, repairing and cleaning entire pump without removing hoses or pump components from trailer. Digital Tachometer/hourmeter installed. Requires 12 Volt Battery: BCI Group 24, Minimum of 500 CCA (Cold Crank Amps) Battery Box Cables Setup for Automotive Post Type Connection.

Features

• Cast Aluminum Casing, Seal Plate and Bell Housing, Cast Iron Adapter, Volute and Suction and Discharge Manifold


• D.O.T. Approved Trailer— Refer to Your State and Local Codes for Registration


• Trash Type Stainless Steel Impeller, Seal Wash Feature for Extended Seal Life


• Silicon Carbide Mechanical Seal and Buna-N O-Rings and Check Valve


• Delivers up to 1,000 GPM, Built-in Check Valve, Self-Priming to 20 Feet


• Easy Cleanout, Patented Unique AMT Slide Mechanism Permits Complete Service of Pump Without Removing Hoses or Removing Pump Components from Trailer


• Digital Tachometer/ Hourmeter Installed, 12 Volt DC Electric Start (Battery NOT included)


• Solids Handling and Dirty Water Design, Maximum Solids Handling 3"

Includes

Steel Suction Strainer and Nipple Included
