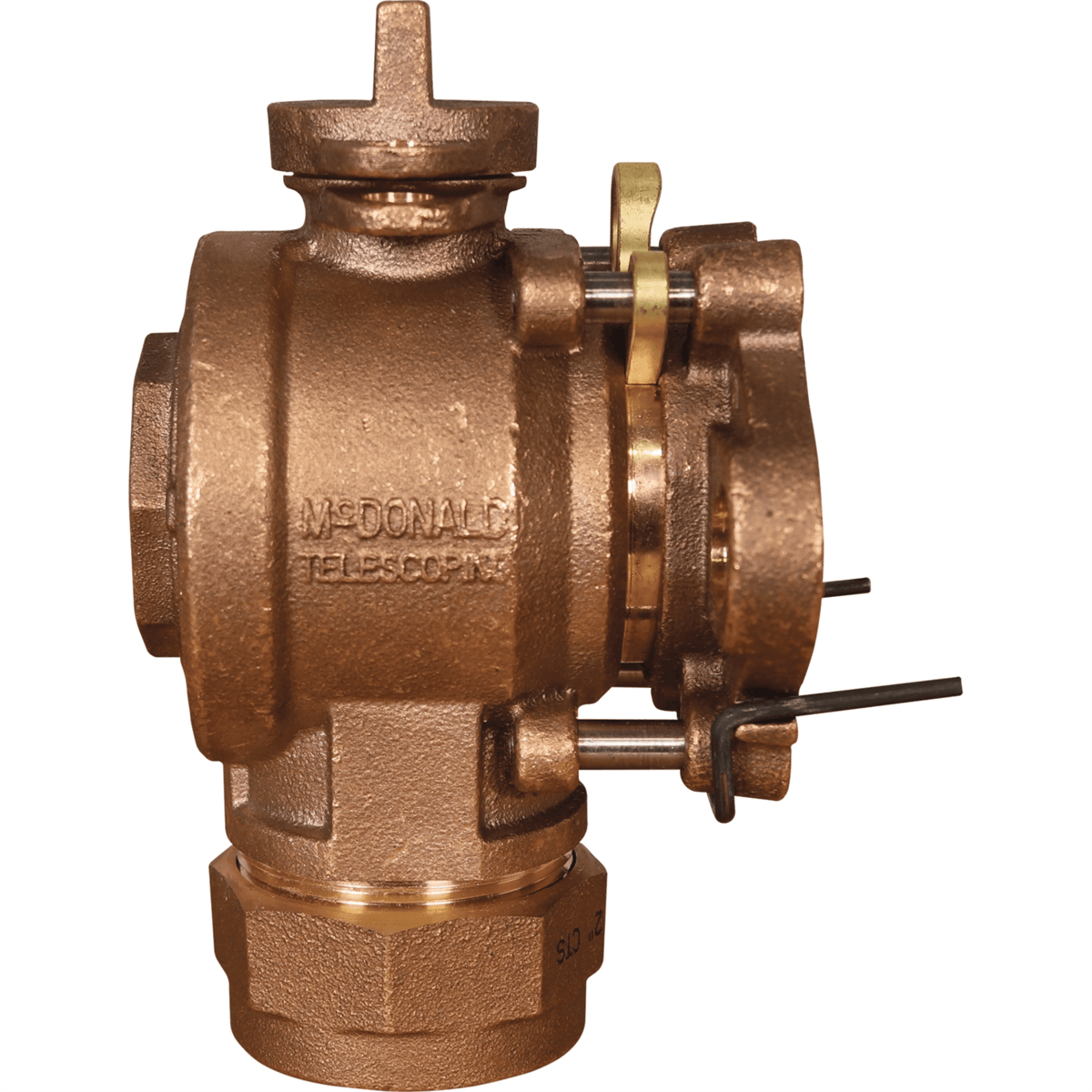

A.Y. McDonald 7E4602BQ 1 1/2 Angle Ball Q-COMP X Telescoping Flange, 5142-489

Details

Description

A.Y. McDonald Angle ball valve operating head rotates 90° open to close. Angle ball valves are non-directional. Meter swivel nuts are less saddle and have internal straight threads per AWWA C700 and include hole for wire seal.

Features

EPDM rubber gaskets are supplied and are standard

Insert stiffeners are required on all flexible plastic connections

Angle Ball Valves have a 300 PSI Lockwing for locking in the closed position

Product Specifications

Handle Type	Meter Key Shut-off
Body Material Type	LEAD FREE
Body Material	BRASS
Inner Box Quantity	4
Handle Material	BRASS
Valve Model Number	5142-489
Valve Size (IN)	1-1/2

Full or Standard Port	STANDARD PORT
Brand	A.Y. McDonald
Valve Type	Ball
Ball Material	BRASS
End Connection 2	METER FLANGE
End Connection 1	FEMALE IRON PIPE THREAD
