Assured Flow Sales Gradelok Offset, 6" X 6", Swivel x Swivel, GL06SW

By Gradelok
$379.95 | EA
Product #: 105290
Mfr. Part #: GL06SW

Out of Stock - Ships in 5-10 Days

Back

Description

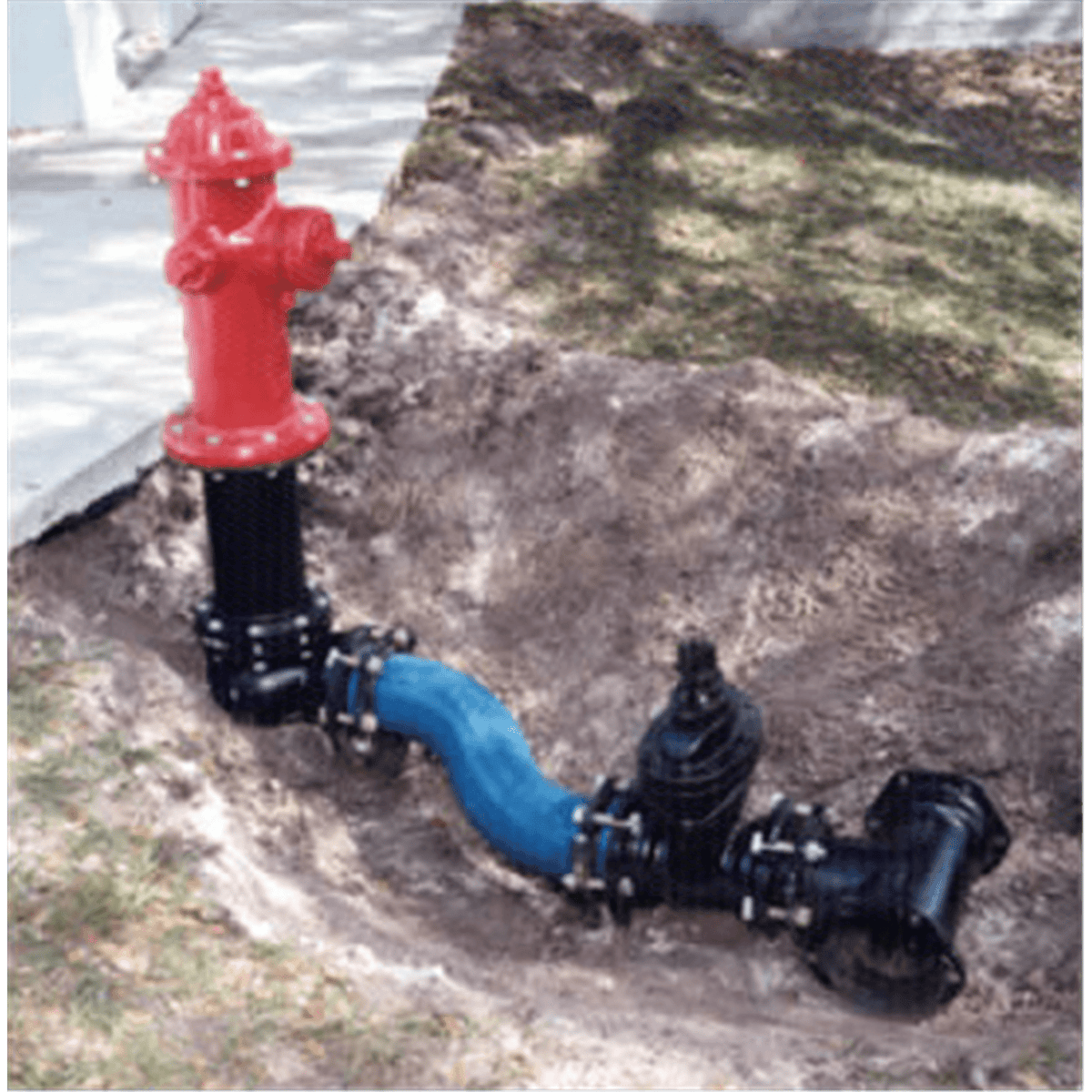

Gradelok gives you the advantages of a restrained joint and grade adjustment in a single fitting. It allows for enhanced aesthetic appearance by having all fire hydrants set exactly to grade, and it saves money by eliminating expensive extension kits and concrete thrust devices.

Features

  • Lower or raise a hydrant's break flange precisely to grade

  • Available in 6", 12", and 24" offsets

  • Will not void a hydrant's warranty

  • Available in FBE & Zinc Coated Primer

Product Specifications

Pressure Rating 350
Body Type COMPACT
Material DUCTILE IRON
ANSI Rating ANSI/AWWA C-153
End Connections SWIVEL
Nominal Size (IN) 6
Offset Distance (IN) 6
Product Type OFFSET
Application POTABLE WATER
Brand GRADELOK
Pipe Size Designation DESIGNED TO FIT BOTH IPS & DIPS (STANDARD GASKET DIPS &TRANSITION GASKET IPS)
Class 153
Coating BITUMINOUS
Lining CEMENT
