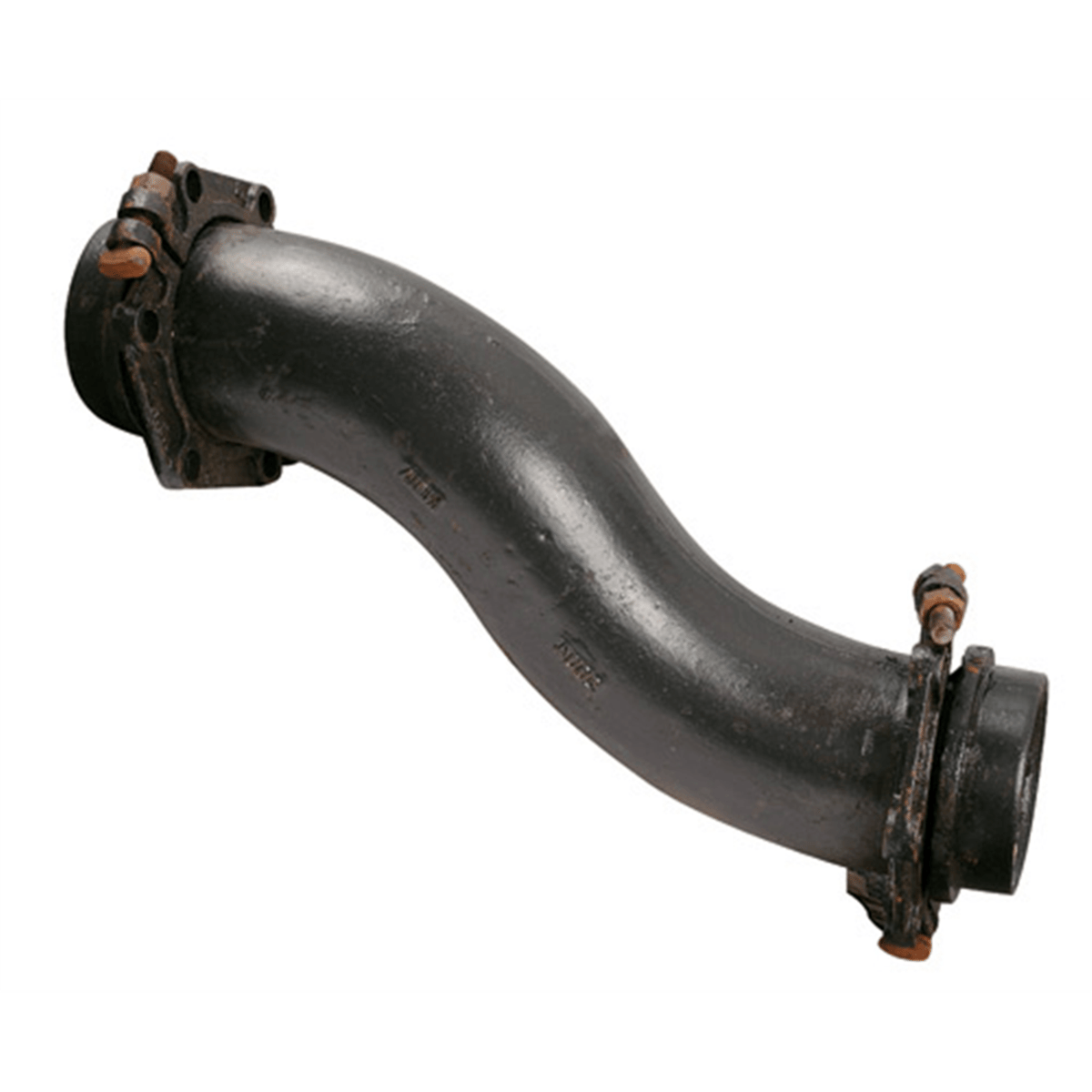

Assured Flow Sales Gradelok Offset, 6" X 6", Mechanical Joint x Swivel, GL06MJ

Details

Description

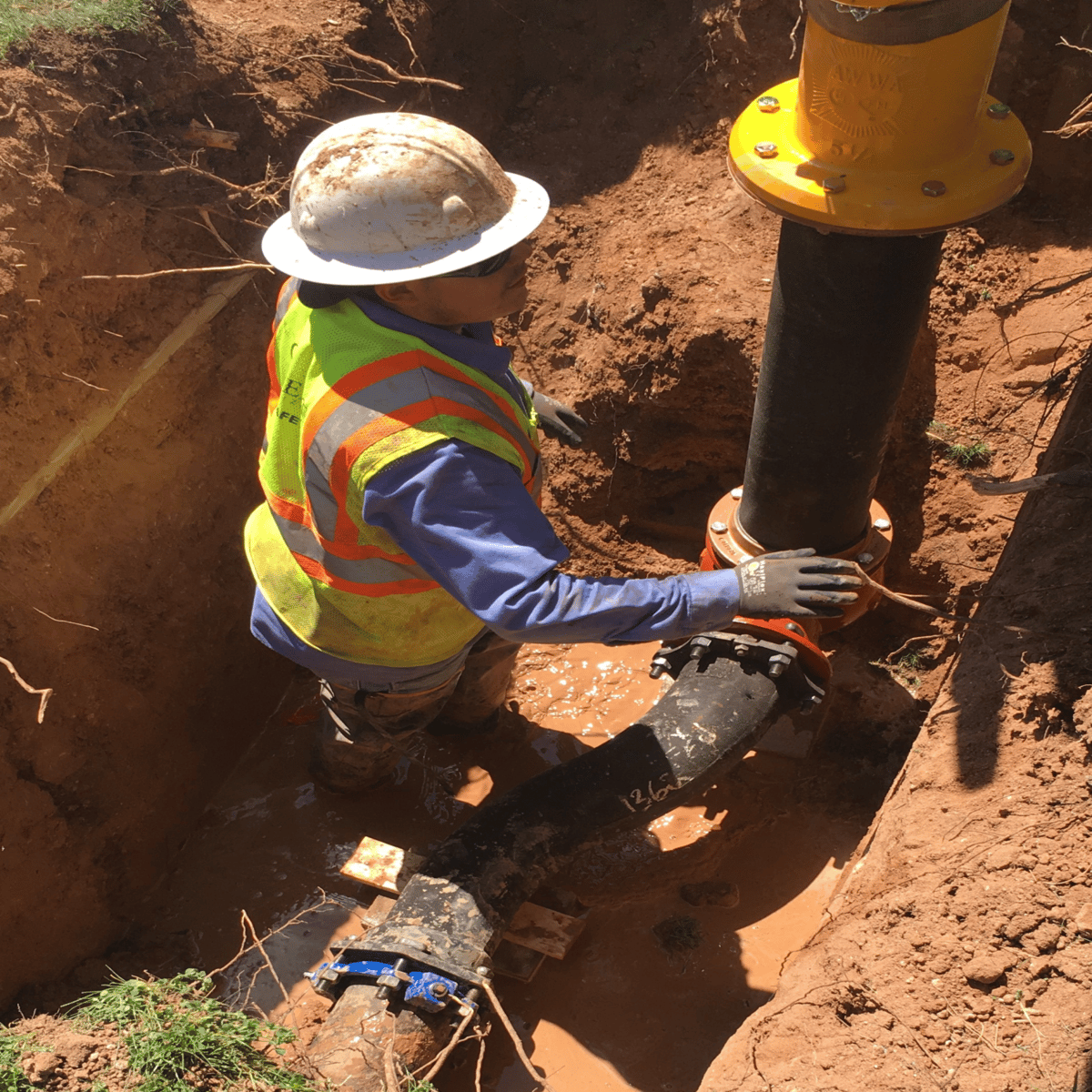

Gradelok gives you the advantages of a restrained joint and grade adjustment in a single fitting. It allows for enhanced aesthetic appearance by having all fire hydrants set exactly to grade, and it saves money by eliminating expensive extension kits and concrete thrust devices.

Features

Lower or raise a hydrant's break flange precisely to grade

Available in 6", 12", and 24" offsets

Will not void a hydrant's warranty

Available in FBE & Zinc Coated Primer

Product Specifications

Lining	CEMENT
Pressure Rating	350
Body Type	COMPACT
Material	DUCTILE IRON
ANSI Rating	ANSI/AWWA C-153
Nominal Size End 1 (IN)	6
Nominal Size End 2 (IN)	6
Offset Distance (IN)	6

Product Type	OFFSET
Application	POTABLE WATER
Brand	GRADELOK
End Connection 2	SWIVEL
End Connection 1	MECHANICAL JOINT
Pipe Size Designation	DESIGNED TO FIT BOTH IPS & DIPS (STANDARD GASKET DIPS &TRANSITION GASKET IPS)
Class	153
Coating	BITUMINOUS
