Termination Enclosure - Universal for Drying Tube or Bellows

Description

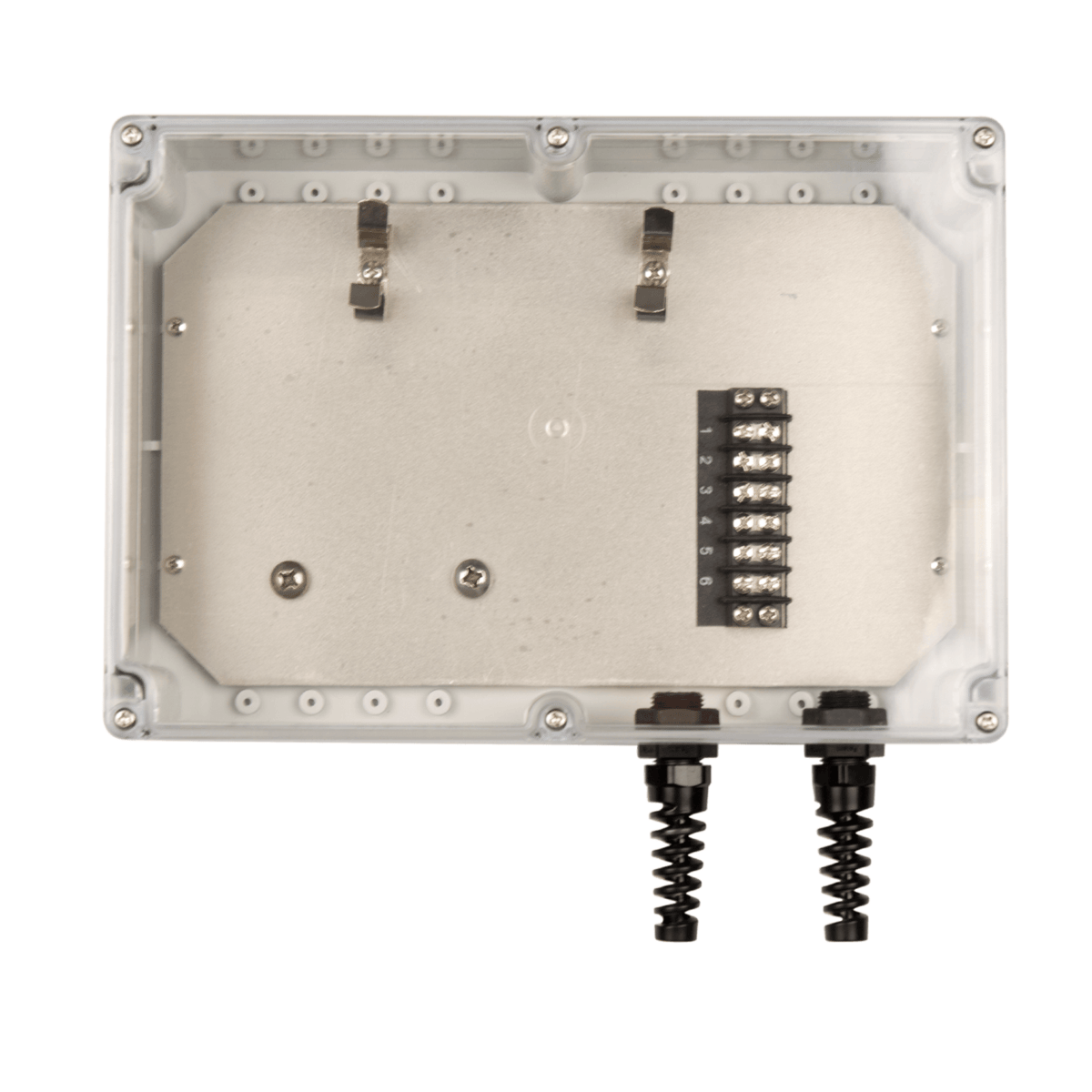

Convenient option complementing gauge-type pressure/level transmitters, where it is desired to terminate the transmitter cable close to the measurment point. Includes NEMA 4X clear front enclosure (7.9 in. x 4.7 in. x 3.5 in.) with two, liquid-tight cable fittings (one in, one out), a terminal strip, and provisions for mounting both a drying tube or bellows assembly, each sold seperately.

Features

• Assists in preventing premature transmitter failure due to humidity

Product Specifications
