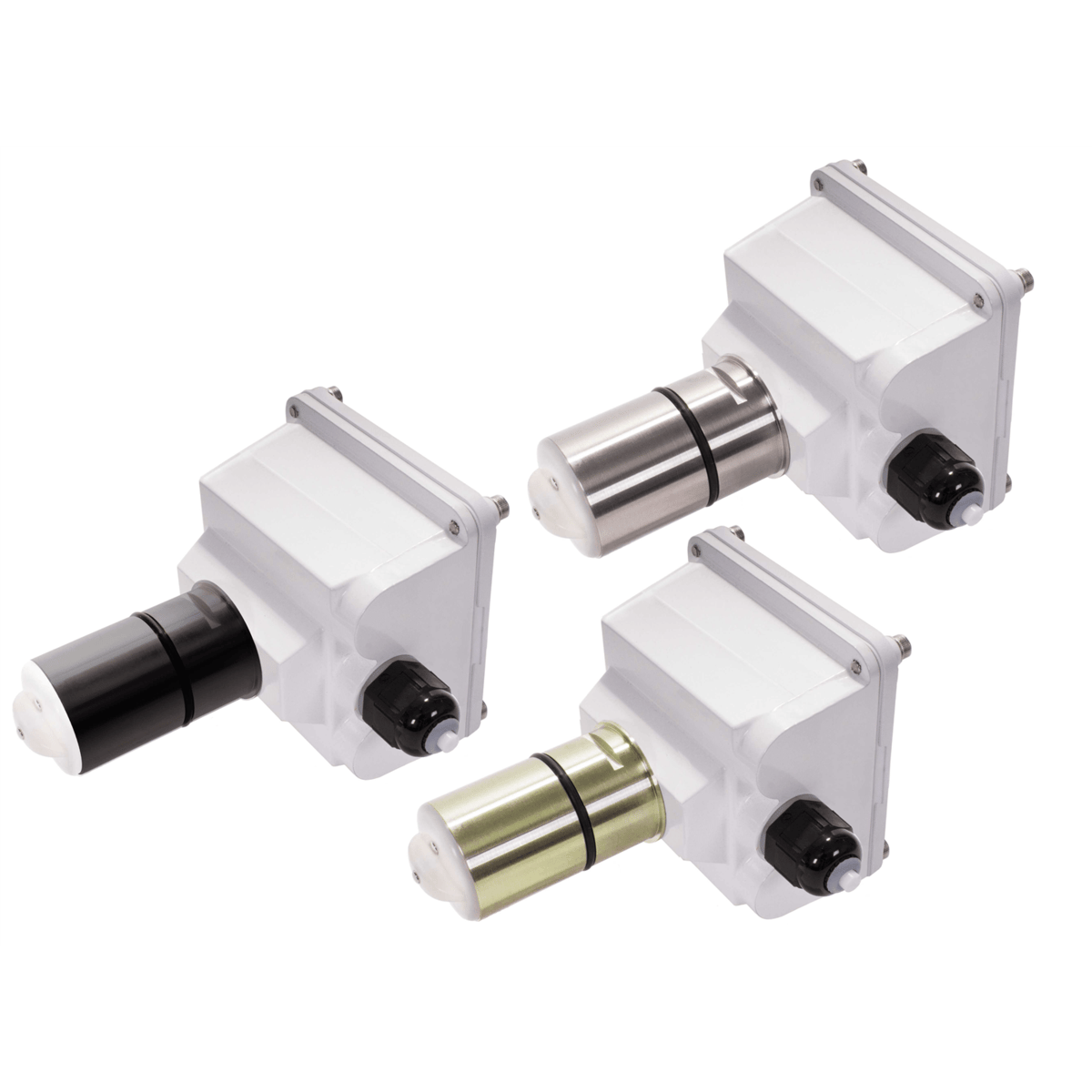

Seametrics® Insertion Electromagnetic Flow Sensor 1"-3", Brass, EX810B

By Seametrics
$1,067.00 | EA
Product #: 401348
Mfr. Part #: EX810B

This item is in stock

Back

Description

The Seametrics® EX810 fixed depth insertion magmeter flow sensor can measure clean or turbid water and provide you with low-flow performance and accuracy superior to any mechanical flow sensor. Pulse output can interface with PLC or use with a Seatmetrics FT-Series Flow Monitor/Totalizer for flow rate/total display and optional 4-20mA output. Brass, use for non-potable water applications.

Features

    Reliable, no moving parts

    Dedicated fittings for simplicity, retainer clip automatically sets correct flow sensor depth

    Meter extends only about 1/8 of pipe diameter, minimizing potential clogging with debris

    Use Brass model for non-potable water applications

    Use for "full pipe" applications

    Easy to install and maintain

    Use with FT430 or FT440 Monitor/Totalizers

Product Specifications

Sensor Cable Length UOMFT
Input5V pulse or contact closure
Power12-25 VDC, 250 mA minimum
Conductivity20
Output(2) Pulse Outputs, Opto-Isolated
Pressure Max (PSI)200
BrandSeametrics
Conductivity UOMuS
Empty Pipe DetectionY
Accuracy1% of full scale
Sensor Cable Length18
