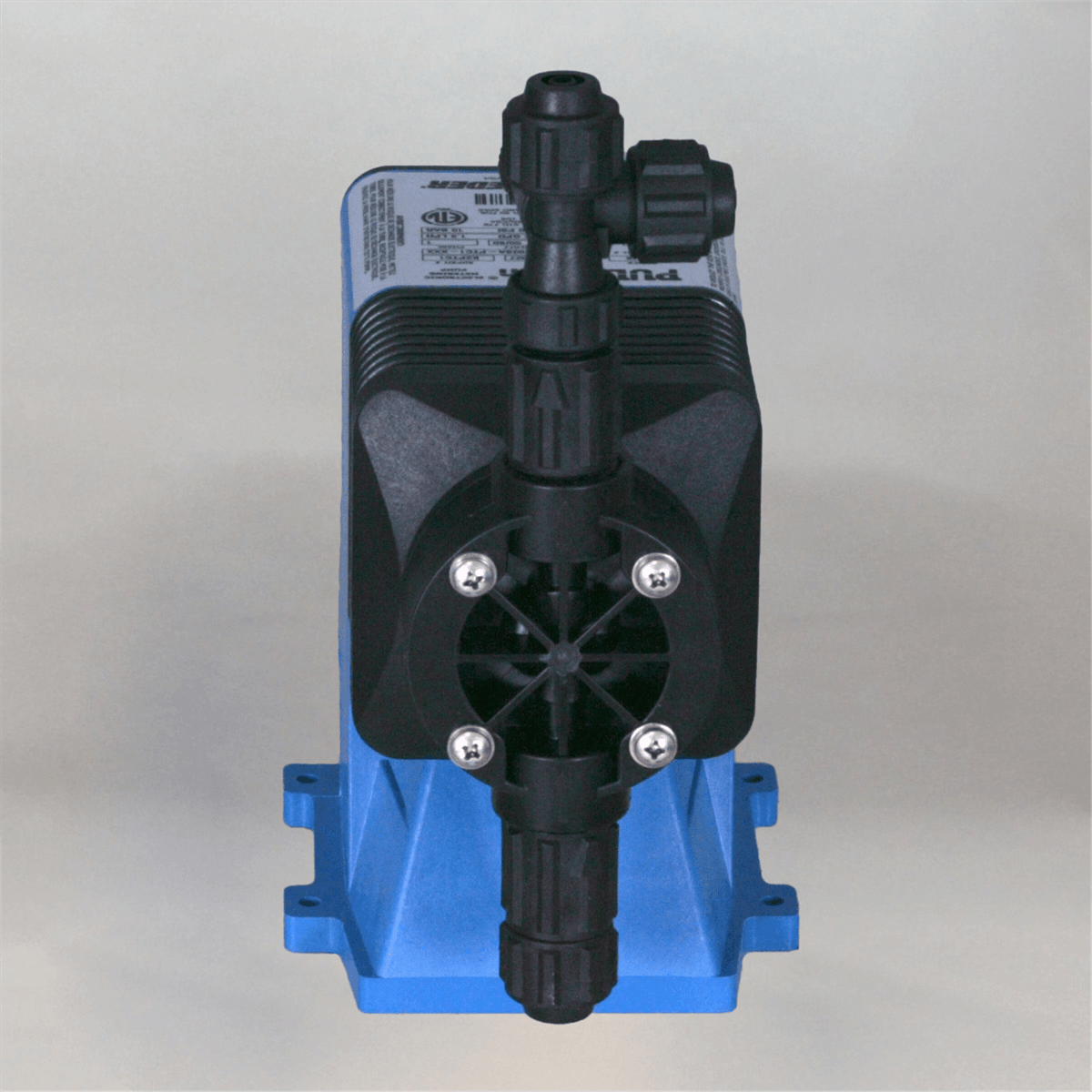

Pulsatron A+ Series Pump, 6 gpd, 150 PSI, 3/8" Tubing, LB02SA-VTC1-XXX

By Pulsafeeder
  • Pulsatron A+ Series Pump, 6 gpd, 150 PSI, 3/8" Tubing, LB02SA-VTC1-XXX
Pulsatron A+ Series Pump, 6 gpd, 150 PSI, 3/8
Pulsatron A+ Series Pump, 6 gpd, 150 PSI, 3/8
Pulsatron A+ Series Pump, 6 gpd, 150 PSI, 3/8
$529.33
Quantity discounts available
QuantityPrice
1 – 2$529.33
3 – 4$464.64
5 +$435.60
Product #: 10535517I2ED
Mfr. Part #: LB02SA-VTC1-XXX

This item is in stock

Back
$529.33
Not finding what you need? Connect with our product specialists here.
Add to
Or:
Create a New List
Related Products
Kop Kit K2VTC1
Kop Kit K2VTC1
$112.98
Back

Description

The PULSAtron Series A Plus offers manual function controls of stroke length and stroke rate as standard, with the option to select external pace for automatic control. Other optional features include external stop function and 2000:1 turndown control. Ten distinct models are available, having pressure capabilities to 250 psig (17 bar), and flow capacities to 58 gpd (9.1 lph), with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 3% of maximum capacity.

Features

  • Manual control by onboard adjustable stroke rate and stroke length knobs

  • Highly reliable timing circuit

  • Circuit protection against voltage and current upsets

  • Solenoid protection by thermal overload with auto-reset

  • Water resistant for outdoor and indoor applications

  • Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics

  • Safe and easy priming with durable leak-free bleed valve assembly (standard)

  • Few moving parts

Product Specifications

Suction Lift (FT) 4
Flow Rate (Max) (GPD) 6
Pressure Max (PSI) 150
Connection Size (IN) 0.375
Voltage (VAC) 120
Brand Pulsafeeder
Wetted Material PVC
Turn Down Ratio 100:1/2000:1
Connection Type Tube OD
