Precision Digital Trident Panel Meter, 85-265 VAC, PD765-6R0-00

Description

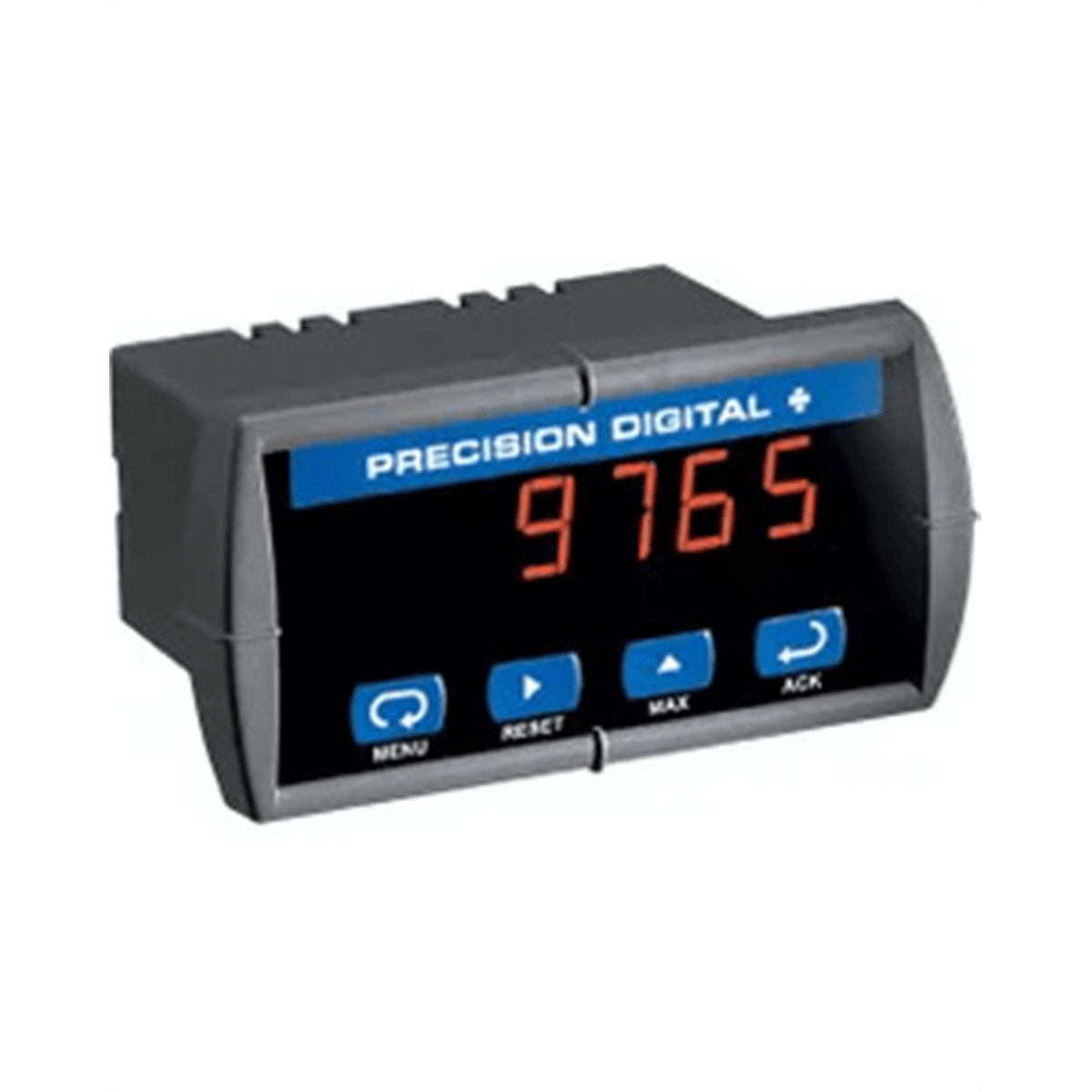

The PD765 Trident digital panel meter is one of the most versatile digital panel meters on the market and will satisfy a wide variety of process and temperature applications. The Trident can be field programmed to accept process voltage (0-5V, 1-5V, etc) and current (4-20 mA) inputs, 100 Ohm RTDs, and the four most common thermocouples. It is housed in a shallow-depth, 1/8 DIN enclosure that features a NEMA 4X front panel and convenient mounting hardware. Programming and setup can be performed with the four front panel pushbuttons.

Features

• The intensity of the display can be adjusted to compensate for various lighting conditions, including direct sunlight.


• 1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front


• 4-Digit Display, 0.56" (14.2 mm) or 1.20" (30.5 mm)


• Shallow Depth Case Extends Only 3.6" (91.4 mm) Behind Panel


• Free PC-Based MeterViewTM Programming & Monitoring Software • No Assembly Required


• Sunlight Readable Display


• Operating Temperature Range: -40 to 65°C (-40 to 150°F)


• High & Low Alarms with Multiple Reset Actions
