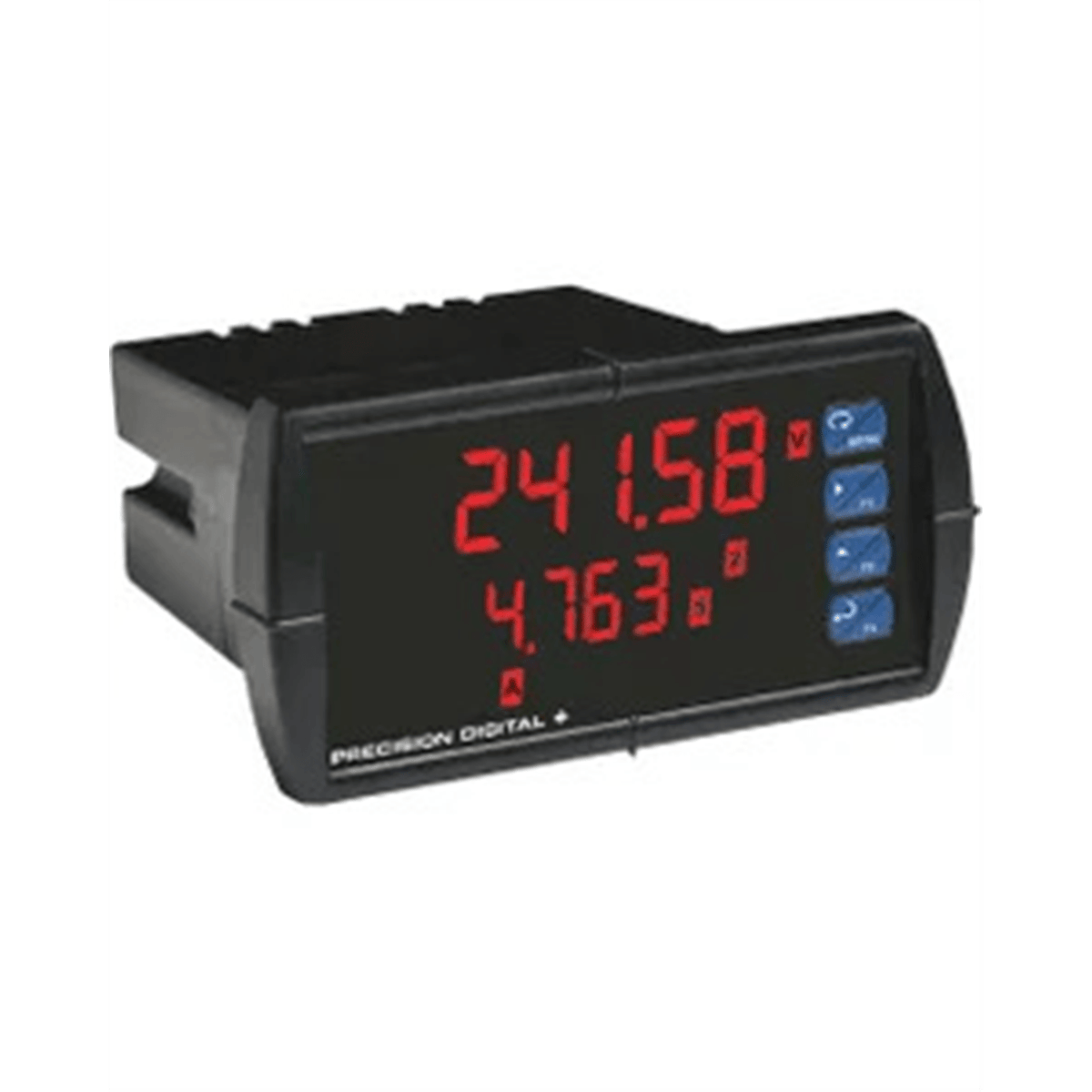

Precision Digital ProVu Display/Controller PD6060

By Precision Digital
$643.76 to $771.18
QuantityPrice
1 – 2$643.76 - $771.18
3 – 4$654.75 - $771.15
5 +$641.25 - $755.25
Product #: 107290
Mfr. Part #:

This item is in stock

Not finding what you need? Connect with our product specialists here.
Back

Description

The ProVu meter boasts specifications, features and functionality that make it the only 1/8 DIN process meter you will ever need. The built-in 24 VDC power supply to drive transmitter not only saves the cost of an external power supply, but also greatly simplifies wiring. In addition, there is a second 40 mA power supply provided with the 4-20 mA output option. The NEMA 4X rated front panel allows for installations exposed to moisture, dust and other adverse conditions. The 6-digit dual-line display can display numbers up to 999,999 on the upper line and show either a tag or the input in a different scale on the lower line. Other key features include four relays and 4-20 mA output option, advanced signal input conditioning like automatic round horizontal tank linearization, function keys, pump alternation capability, and Modbus RTU serial communications.

Features

  • Dual-Input Process Meter with Math Functions

  • Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More

  • Large Dual-Line 6-Digit Display, 0.60" & 0.46"

  • Optional SunBright Display Models for Outdoor Applications

  • NEMA 4X, IP65 Front

  • Programmable Display & Function Keys

  • Modbus RTU Communication Protocol Standard

  • Onboard USB and MeterView® Pro Programming Software
