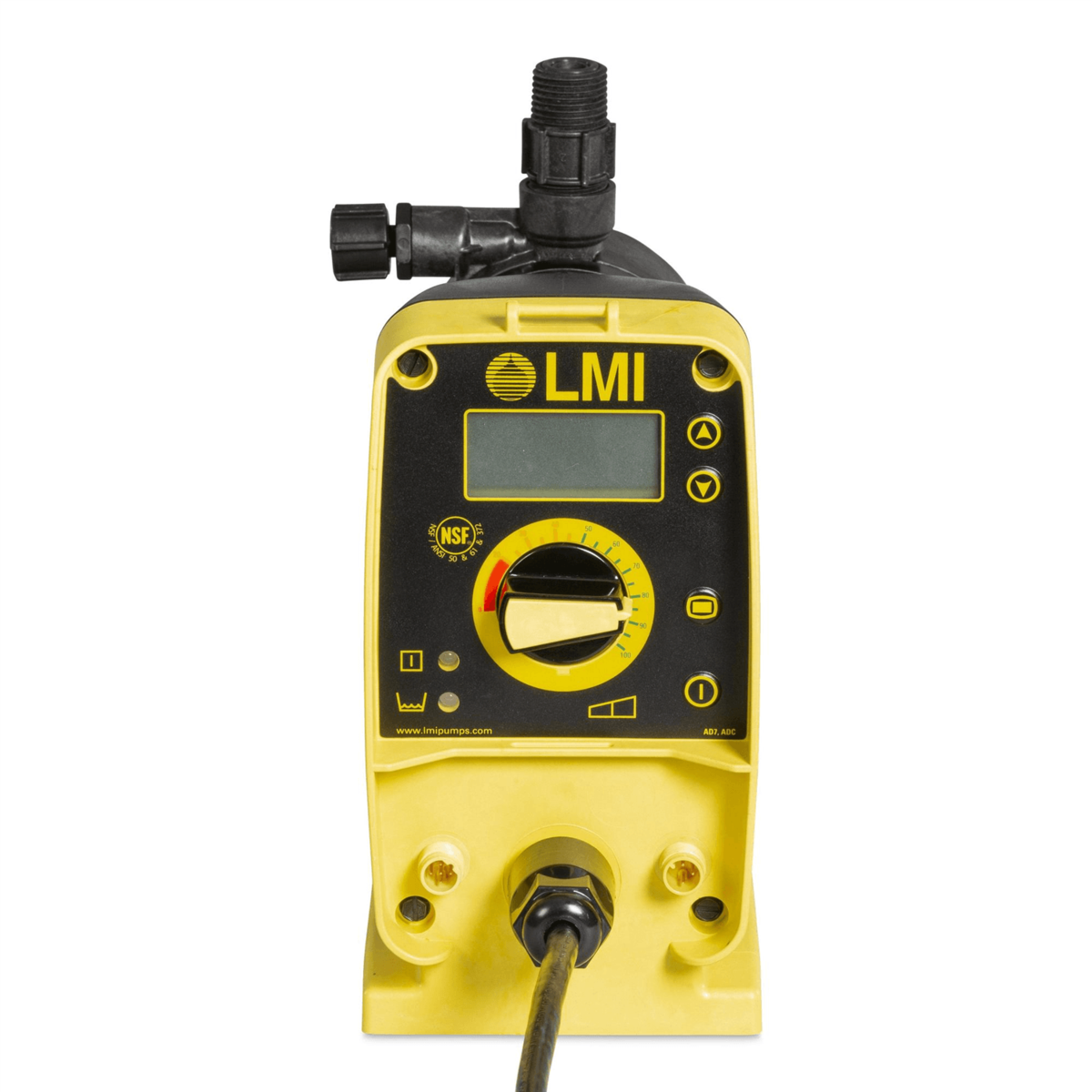

LMI Roytronic EXCEL Digital AD Chemical Feed Pump AutoPrime Head 7.92 GPD 250 PSI AD841-A20HI Chlorine

By LMI
  • LMI Roytronic™ EXCEL™ Digital AD Pump, AutoPrime Head, 7.92 GPD, 250 PSI, AD841-A20HI, Chlorine
LMI Roytronic™ EXCEL™ Digital AD Pump, AutoPrime Head, 7.92 GPD, 250 PSI, AD841-A20HI, Chlorine
LMI Roytronic™ EXCEL™ Digital AD Pump, AutoPrime Head, 7.92 GPD, 250 PSI, AD841-A20HI, Chlorine
$1,928.00
Quantity discounts available
QuantityPrice
1 – 2$1,928.00
3 – 4$1,672.00
5 +$1,584.00
Product #: 10699111C5EP
Mfr. Part #: AD841-A20HI

Out of Stock - Ships in 5-10 Days

Not finding what you need? Connect with our product specialists here.
Add to
Or:
Create a New List
Related Products
LMI Repair Kit, RPM-A20A
LMI Repair Kit, RPM-A20A
$238.00
Back

Description

LMI Roytronic™ EXCEL™ Digital Series Pump AD8 Model offer manually adjustable stroke frequency and length. Accepts pulse and 4-20mA signal inputs. Pulse multiply/divide function capability. Speed is manually adjustable when in local control mode. The LCD display shows stroke speed, pump status and setup menus. Display can be set up to show theoretical flow rate, an approximation based on stroke and speed. Low level indication remote input. FastPrime™ Liquid Ends.

Features

  • 24 VDC output can power remote device

Includes

4-function valve, foot valve/strainer and 16 FT of polyethylene tubing

Product Specifications

Flow Rate (Max) (GPD) 7.92
Pressure Max (PSI) 250
Viscosity Max (cP) 200
Connection Size (IN) 1/4
Voltage (VAC) 115/230
Brand LMI
Wetted Material Acrylic Head, PVC fittings, Ceramic check balls, Liquifram™ Fluorofilm™, PTFE/Polyprel® Check Valve
Turn Down Ratio 1000:1
Connection Type Tube OD
Suction Lift (FT) 5

Certifications

  • NSF/ANSI 61 Certified,NSF 372 Certified
