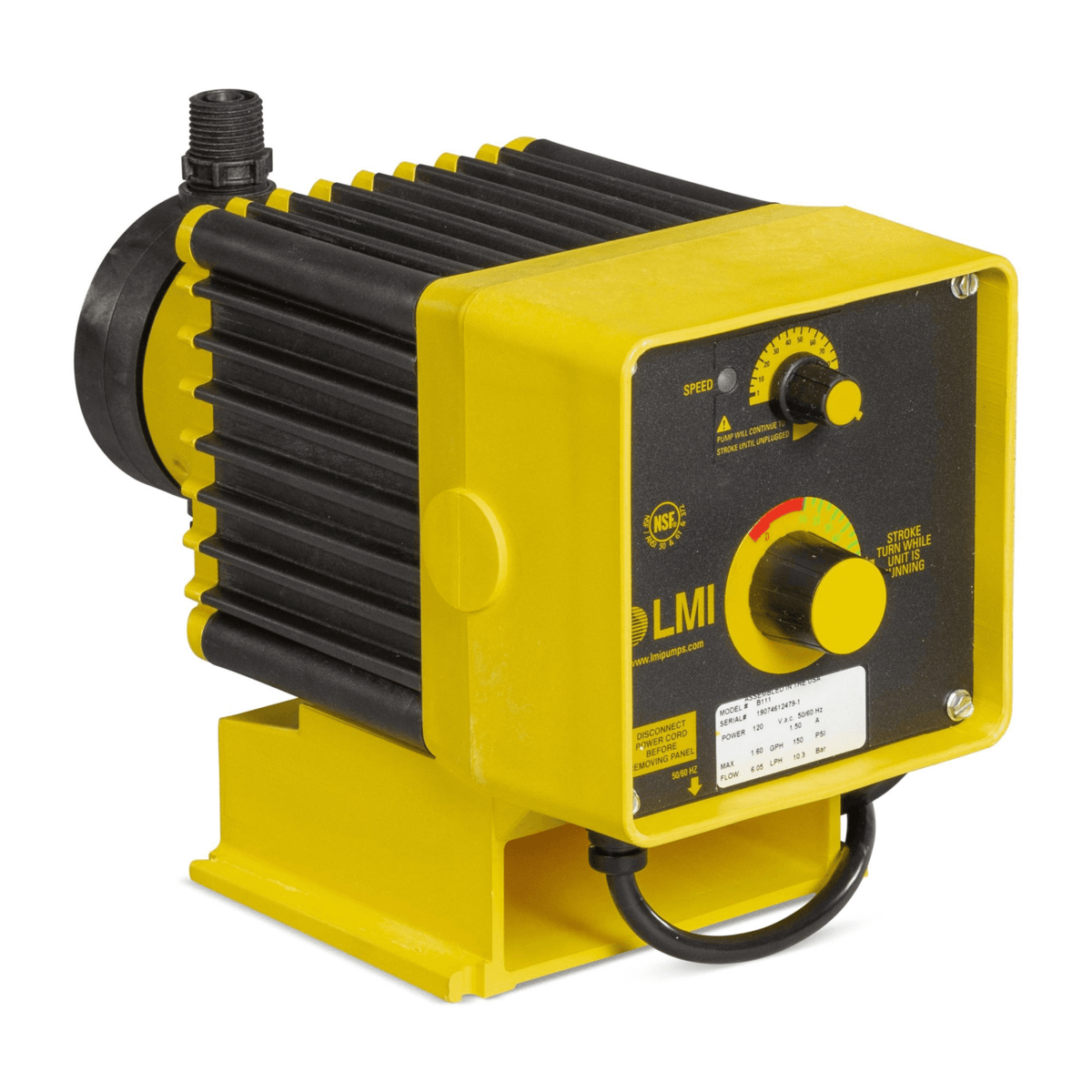

LMI C1 Chemical Metering Pump High-Viscosity Head 96 GPD 100 PSI C121-75HV Polymer

By LMI
$2,367.00
QuantityPrice
1 – 2$2,367.00
3 – 4$2,057.70
5 +$1,949.40
Product #: 10690819DCDG
Mfr. Part #: C121-75HV

Out of Stock - Ships in 21 Days

Not finding what you need? Connect with our product specialists here.
Related Products
LMI Repair Kit, SP-75HV
$225.00
Back

Description

LMI's Series C1 Chemical Feed Pumps feature two manual dials for simple control of stroke speed and length. Encapsulated electronics along with a rigid housing ensure years of precise, repeatble performance.Pump configured to be used with aluminum sulfate (alum) and polymer.

Features

  • Frequency up to 100 strokes per minute for accurate dosage

Includes

Discharge valve, 3-1/2 FT of vinyl tubing and 10 FT of polyethylene tubing

Product Specifications

Flow Rate (Max) (GPD) 96
Pressure Max (PSI) 100
Viscosity Max (cP) 40000
Connection Size (IN) 1/2
Voltage (VAC) 115/230
Brand LMI
Wetted Material Polypropylene Head & Fittings, 316SS check balls, Liquifram™ Fluorofilm™, PTFE check valve
Turn Down Ratio 100:1
Connection Type Tube OD
Suction Lift (FT) 3.5

Certifications

  • NSF/ANSI 61 Certified,NSF 372 Certified
