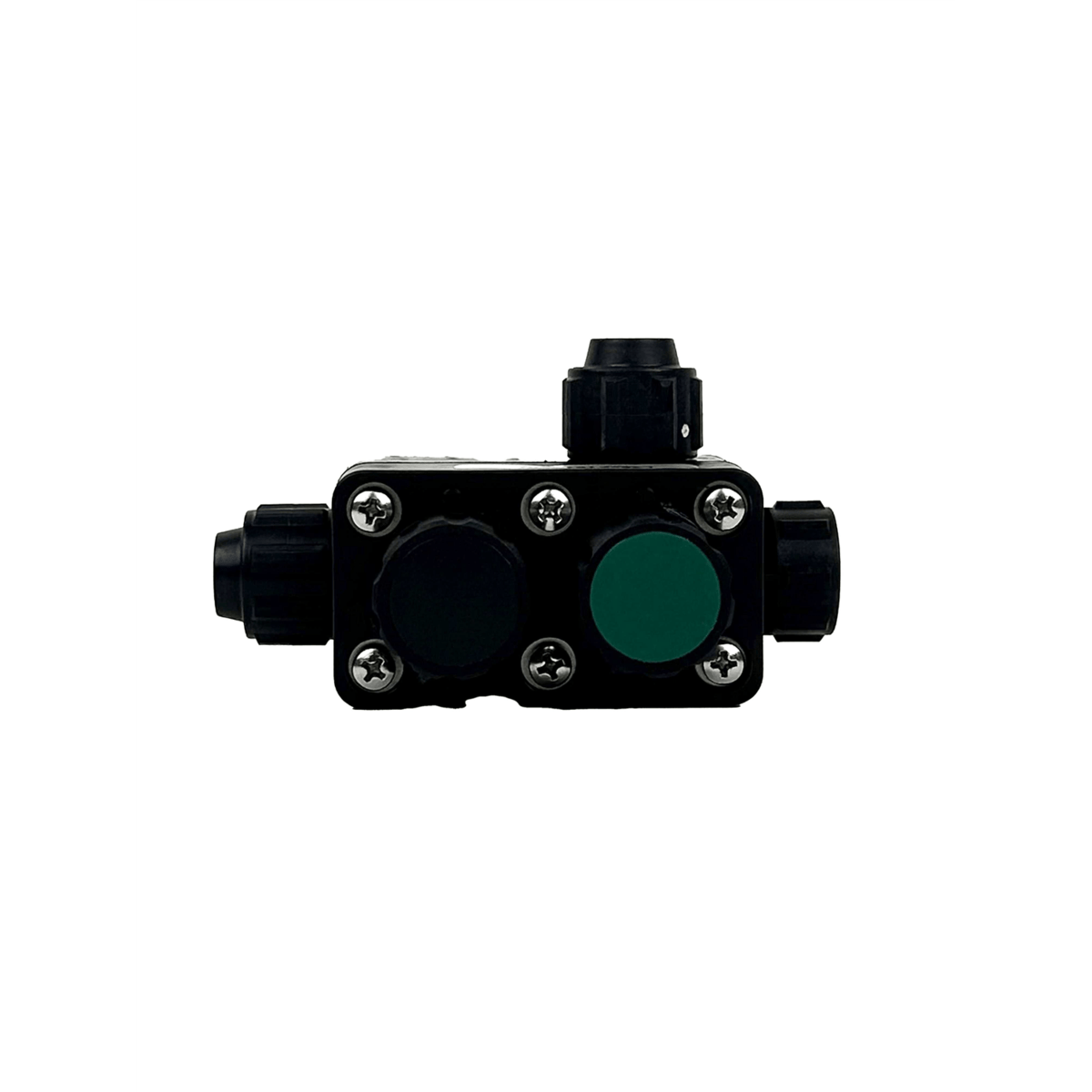

L380FT01-PVD 5-Function Valves w/ Pressure relief

Description

The Pulsafeeder Five Function Valve is packed with features that increase safety, enhance performance and generally improves the convenience of operation. The functions are selected by setting two dual position selector knobs. The label on the back panel of the valve identifies each function with selector knob positions. Connected to the existing discharge valve the Five Function Valve is capable of handling a large output flow as well as viscous liquids. A return port located on the side body provides flow of chemical back to the solution tank when in the air bleed or drain discharge mode.

Features

• Relieve excessive pressure in discharge line to protect connections and tubing


• Back pressure - maintains output reproducibility and allows metering into atmospheric discharge


• Anti-Siphon - prevents siphoning through the pump when point of injection is lower than the pump


• Air Bleed - used during priming to manually remove air from the pump head


• Discharge drain - depressurize pump discharge line without loosening tubing or fittings
