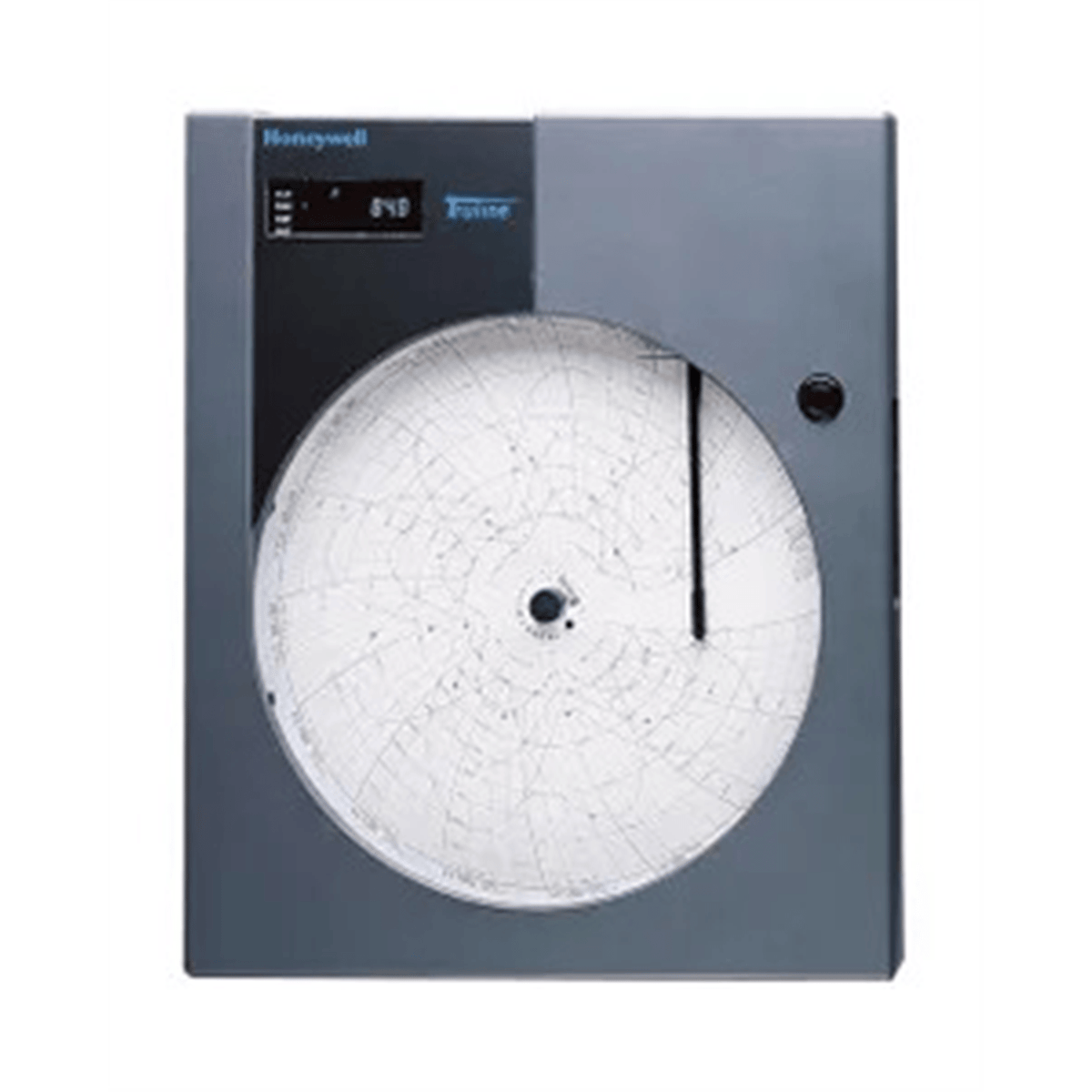

Honeywell DR4500 Truline™ 12" Chart Recorders, Single Pen, DR45AT-1000-00-000-0-000000-0

Description

Honeywell's 12" circular chart recorder, ±0.05% full scale accuracy, prints its own graph grid, scales, timestamps, recorder ID header, pen ID marks and up to four inputs (pens) on thermal paper with one black and white stylus. Comes with digital display and keyboard, communications, control outputs, alarms and digital inputs, totalization, and math options.

Features

• ±0.05% full scale accuracy


• 12" Circular Charts


• Single Channel T/C, RTD, mV, 0-5 VDC, 4-20 mA, Radimatic 0-10VDC


• Single Pen


• All-purpose thermal chart - Eliminatesneed for stocking multiple charts


• “One-pen Printer — prints configurable alphanumeric chart data including time and trend lines. This automatically compensates for chart width variations caused by changes in the ambient relative humidity.


• Time/Date — real-time, clock, dates, time of printing (hour, minutes, date and year) and any operator changes in real time guard against unauthorized chart advancement.

Includes

Single Channel
