Hach IntelliCAL MTC301 Laboratory General Purpose Refillable ORP/RedOx Electrode, 1 m Cable,MTC30101
Accessories
Description

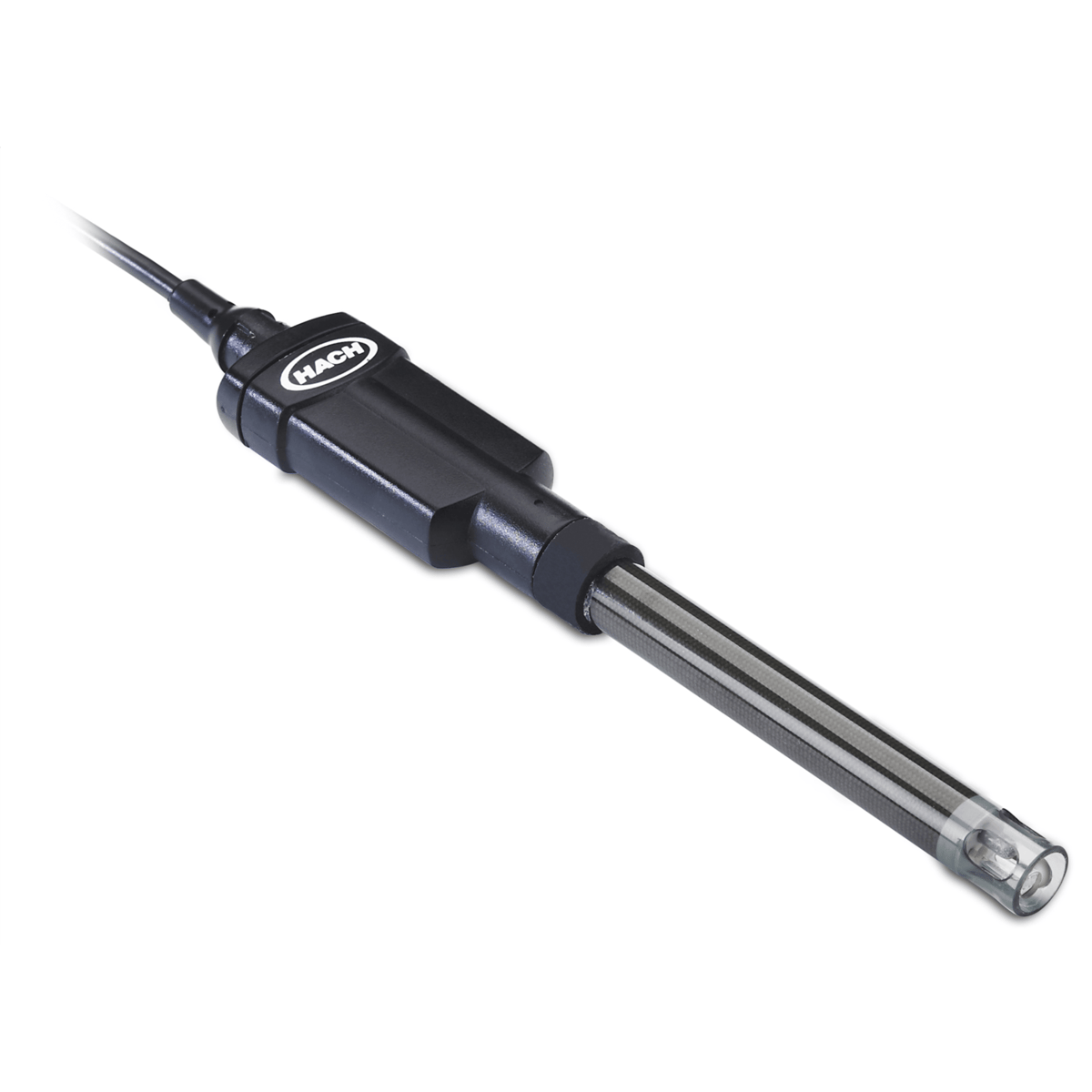

IntelliCALⓇ MTC301 is a digital combination oxidation reduction potential (ORP/RedOx) electrode with built-in temperature sensor. The MTC301 has a refillable with a ceramic pin reference junction. The laboratory version of this metallic electrode is shockproof with its epoxy plastic body protecting down to the platinum sensing element. The Electrode is available with a 3 or 1 m cable. The MTC301 electrode is ideal for measuring ORP/RedOx absolute mV values in wastewater, drinking water and aqueous media applications. The MTC101 is not suitable for use with organic solvents. A 59 mL bottle of reference electrolyte filling solution (3M KCl solution saturated with AgCl) is included with the probe.
Features
- IntelliCAL digital probes lock on the result when the measurement is stable, removing the guesswork in having a moving number.
- Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
- No guesswork needed to provide most reliable and accurate results with each measurement.
- Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters
Product Specifications
Probe type | Standard |
Resolution | ±0.1 mV |
Sensor type | Platinum disc |
Special features | Flat disc sensor for easy cleaning. |
Filling solution | 3 M KCl solution saturated with AgCl (#2841700) |
Electrode Type | Refillable Reference Element |
Temperature Resolution | 0.1 °C (0.18 °F) |
Thermistor | ATC |
Accuracy | ±0.02 mV or 0.05%, whichever is greater |
Junction | Porous Pin Junction |
Weight | 0.9500 |
Sensor Material | Epoxy |
Sample Depth | 20 mm (0.79 in.) |
Reference System | Ag/AgCl |
Product Kit | Model: MTC301 Accessories Included: None |
Temperature Accuracy | ±0.3 °C (±0.54 °F) |
Method Type | Laboratory: Refillable Reference Element |
Temperature range | 0 - 80 °C (32 - 176 °F) |
Parameters | ORP |
Warranty | 12 months |
