Flowline EchoBeam LR80-0000 80GHz Radar, 32.8ft, 1.5" NPT Vert 1" NPT Conn 4-20mA, Liquids/Solids

Description

Offered in four models, the Flowline EchoBeam series of radar level transmitters is the most reliable and easy-to-use non-contact level sensor. Flowline’s 80 GHz radar technology is unaffected by most media, process, or environmental factors, and the intuitive LevelTap App makes configuration simple.

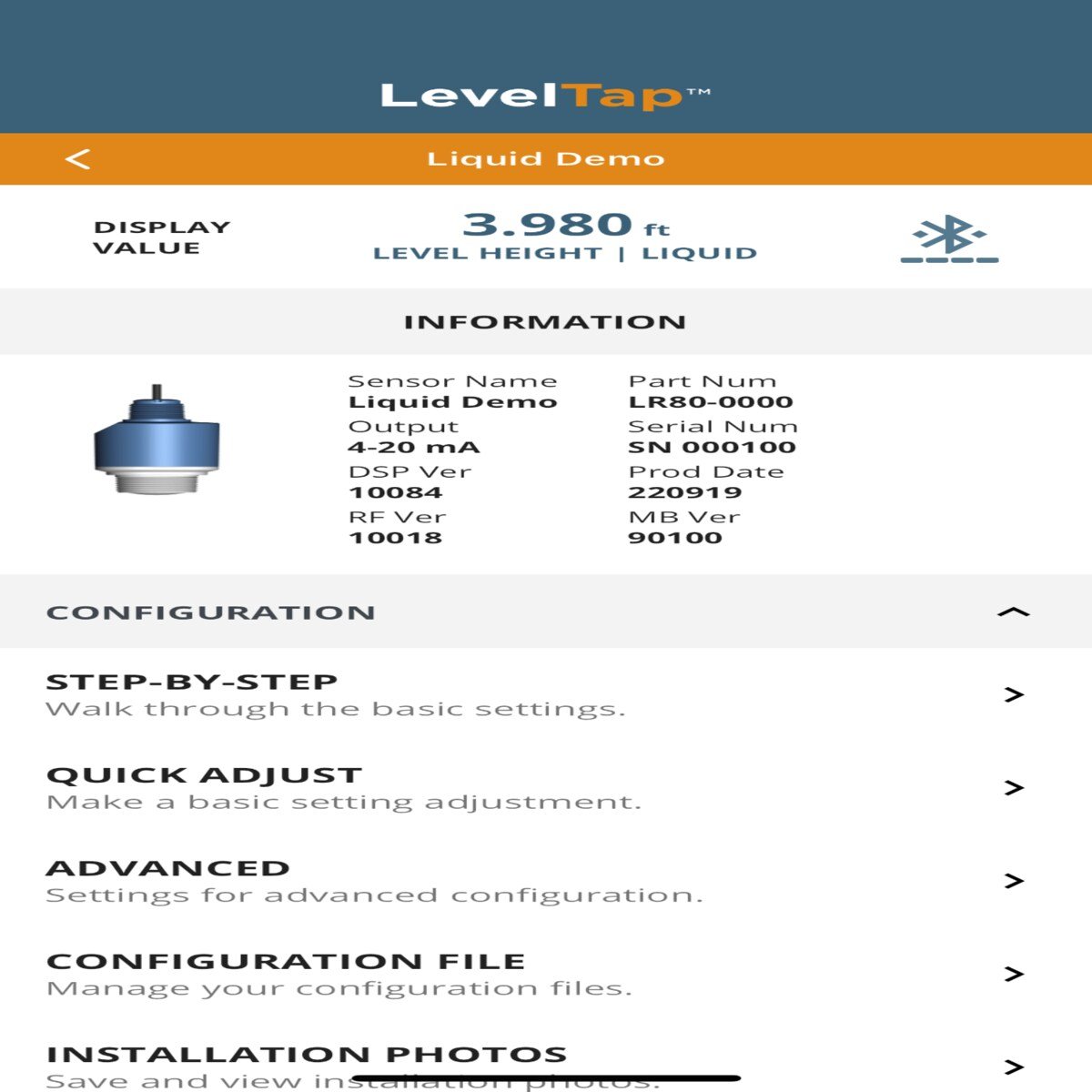

These general-purpose 80-GHz radar level sensor transmitters provide continuous level measurement up to 196.8’ (60m) for liquids with a 4-20 mA, HART, Modbus, or SDI-12 signal output. The level sensor transmitter is wirelessly configured over Bluetooth via the free Flowline LevelTap App, which enables you to see the level, verify the status, and manage the settings of connected level sensor transmitters from the safety of the ground or nearby catwalk to avoid challenging conditions. The level sensor transmitter provides reliable measurement of liquid and solid media with a high accuracy dielectric constant value ≥ 1.6, such as water, chemical or petroleum-based liquids, and pellet, grain, powder, or aggregate solids.

Flowline offers a variety of installation solutions, including adhesive fittings for non-invasive measurement through flat mount plastic or fiberglass tank tops; capped PTFE fitting adapters for extremely corrosive media; and adjustable 316 brackets for side wall or above tank mounting.

Radar Level TransmitterFeatures

• 80-GHz technology provides reliable, maintenance-free operation




• Measures with significant dust, agitation, foam, or low dielectrics




• Measures level height, air gap, tank volume, or open channel flow




• Rugged PVDF antenna and enclosure for corrosive liquid or solids




• Shielded 10m PVC jacketed cable for corrosive level environments




• Zero dead band maximizes the potential fill capacity of small tanks




• Optionally measures through the top wall of plastic or fiberglass tank




• Bluetooth wireless configuration via the LevelTap™ mobile App

Product Specifications
