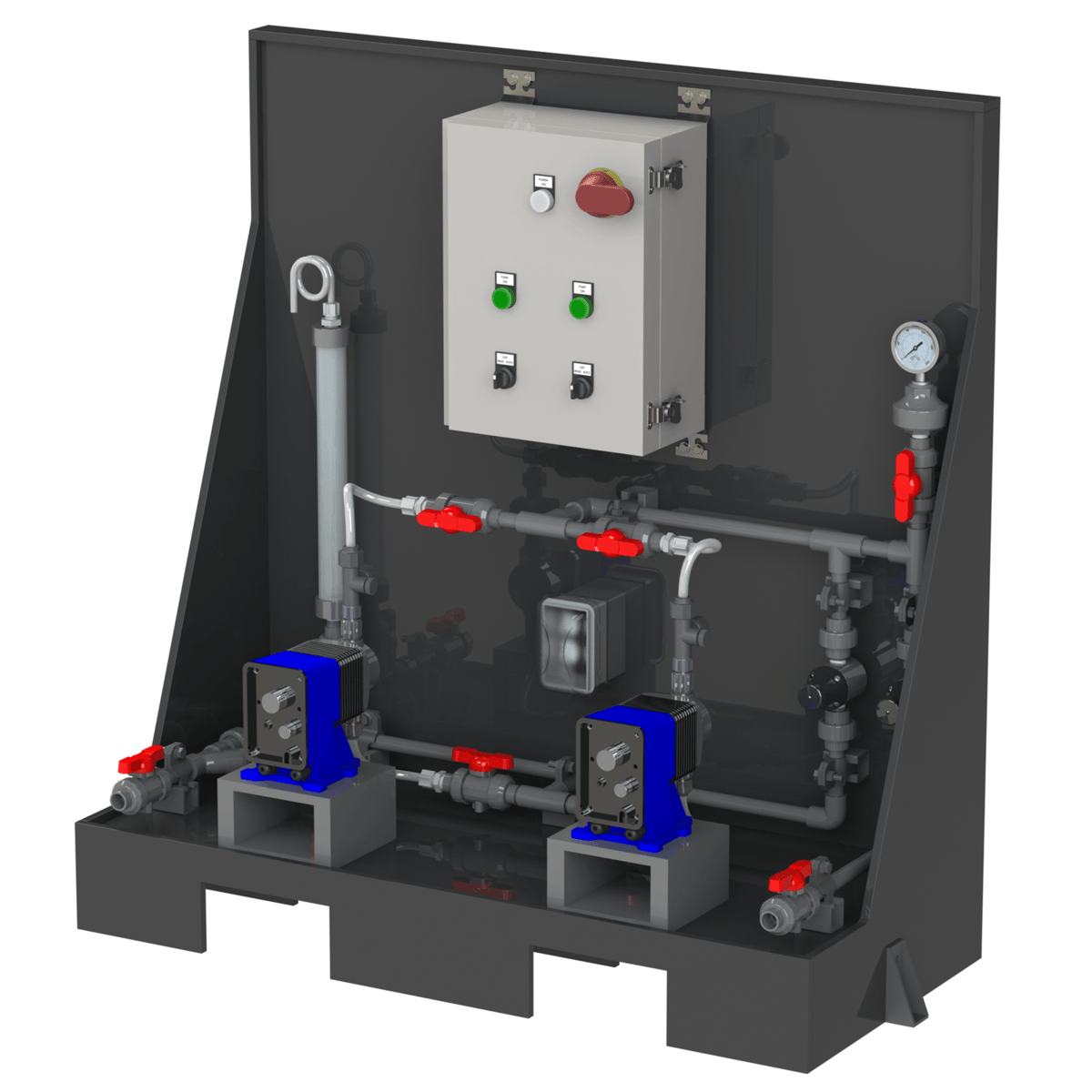

Duplex Integrated Chemical Metering Skid System, Vented Valves, M200-CMPD-V

By Core & Main

Call For Pricing

Product #: 401998
Mfr. Part #: M200-CMPD-V

Drop Ship - Call for Availability

Ships via Motor Freight
Back

Description

The methodology empowers users to obtain pre-plumbed systems and customize them by adding pumps on-site. Alternatively, the customer can choose their preferred brand of metering pump/s, which can be installed and tested before delivery. The control panel options offer users a range of sophistication, including: 1. Simple Terminal Box (TB) for signal wire routing. 2. Local Control Panel One (LCP1) - Provides terminal routing and incorporates dual MOA switches with a power cord and breakers. 3. Local Control Panel Two (LCP2) - Adds power and run lights, along with a power disconnect to the LCP1.

Ordering: Tailored configurations provide features such as feed verification, automatic switchover, and the option to integrate on-board controllers or timer packages. Installation and startup services are also available for these systems. Due to the many options that are offered with these skid units, please call Core & Main Supply at 1-888-885-2673 and talk with our Product Specialist Team about available options and pricing. Options to know before you call: Select your Configuration: (Simplex Unit, Duplex Unit) Who will Supply the Pump: (Use Your own Pump, Purchase Pump with the Unit) Type of Pipe to be Used: (CPVC, PVC, Stainless Steel Tube, PVDF Kynar) Select Pipe Size: (1/2", 3/4") Select Pump Manufacturer: (Grundfos, LMI, Pulsafeeder, Stenner, Other) Select Calibration Column Size: (250 ml, 500 ml, 1000 ml, 2000 ml) Select Elastomer Type: (Viton, EPDM, Teflon) Include Wye Strainer: (Yes/No) Include Pressure Relief Valve: (Yes/No) Include Vented Ball Valve: (Yes/No) Include Pulsation Dampener: (Yes/No) Select Type of Control Box: (No Control Box, Terminal Box, Local Control Panel, Local Control Panel with Auto Switchover)

Features

  • · Simplex & Duty / Standby Duplex Configuration

  • · Pre-Packaged and Tested

  • · Ready to Install– Plug N’ Play

  • · Reduces Hassle & Labor

  • · Expandable Choices and Sophistication

  • · Flexible Control Options

  • · Select Any Metering Pump Brand

  • · Output Range—1- 20 gallons per hour

Includes

One Piece Base & Back Plane, Two Plug Receptacle GFI Protected (Optional for the Simplex Skid), Inlet Isolation Valve, Suction Header -Pump Isolation Valves, Calibration Assembly with Isolation Valve, NPT Inlet / Outlet Connections, Pump Pedestals, Discharge Isolation Valve, Discharge Header- Pump isolation Valves, Pressure Gauge with Guard & Isolation, Back pressure valve (50 psi), Optional 1/2" PVC Inlet Y -Strainer, Optional Pressure Relief Valve
